EVIDENCE FOR MAGNESIUM ISOTOPE HETEROGENEITY IN THE SOLAR PROTOPLANETARY DISK

, , , , , , , , , and

Published 2011 June 21 © 2011. The American Astronomical Society. All rights reserved.
, , Citation Kirsten K. Larsen et al 2011 ApJL 735 L37 DOI 10.1088/2041-8205/735/2/L37

2041-8205/735/2/L37

ABSTRACT

With a half-life of 0.73 Myr, the 26Al-to-26Mg decay system is the most widely used short-lived chronometer for understanding the formation and earliest evolution of the solar protoplanetary disk. However, the validity of 26Al–26Mg ages of meteorites and their components relies on the critical assumption that the canonical 26Al/27Al ratio of ∼5 × 10−5 recorded by the oldest dated solids, calcium–aluminium-rich inclusions (CAIs), represents the initial abundance of 26Al for the solar system as a whole. Here, we report high-precision Mg-isotope measurements of inner solar system solids, asteroids, and planets demonstrating the existence of widespread heterogeneity in the mass-independent 26Mg composition (μ26Mg*) of bulk solar system reservoirs with solar or near-solar Al/Mg ratios. This variability may represent heterogeneity in the initial abundance of 26Al across the solar protoplanetary disk at the time of CAI formation and/or Mg-isotope heterogeneity. By comparing the U–Pb and 26Al–26Mg ages of pristine solar system materials, we infer that the bulk of the μ26Mg* variability reflects heterogeneity in the initial abundance of 26Al across the solar protoplanetary disk. We conclude that the canonical value of ∼5 × 10−5 represents the average initial abundance of 26Al only in the CAI-forming region, and that large-scale heterogeneity—perhaps up to 80% of the canonical value—may have existed throughout the inner solar system. If correct, our interpretation of the Mg-isotope composition of inner solar system objects precludes the use of the 26Al–26Mg system as an accurate early solar system chronometer.

Export citation and abstract BibTeX RIS

1. INTRODUCTION

The presence and initial abundances of short-lived radionuclides (e.g., 26Al, 41Ca, 53Mn, 60Fe, 182Hf) in the solar system are widely used to understand the timescales of processes in the early solar system and to deduce the astrophysical environment where our Sun formed (McKeegan & Davis 2003; Goswami 2004). These radionuclides are believed to have a nucleosynthetic, stellar origin and have been either inherited from the interstellar medium or injected into the protosolar molecular cloud prior to or contemporaneously with its collapse (Sahijpal & Goswami 1998). If 26Al that decays to 26Mg with a half-life of 0.73 Myr was uniformly distributed in the solar system, it potentially provides a precise relative chronometer for early solar system processes (e.g., Lee et al. 1977; Russell et al. 1996; Galy et al. 2000; Bizzarro et al. 2004).

Uniform distribution of 26Al in the solar system with the so-called canonical initial 26Al/27Al ratio of (5.23 ± 0.13) × 10−5 (Jacobsen et al. 2008) has been inferred from Mg-isotope measurements of primitive meteorites and their components (Thrane et al. 2006; Villeneuve et al. 2009), and from the concordancy between 26Al–26Mg and 207Pb–206Pb ages obtained on the same chondritic components, namely calcium–aluminium-rich inclusions (CAIs) and chondrules (Amelin et al. 2002; Connelly et al. 2008a). However, the resolution required to unequivocally rule out 26Al heterogeneity has been unattainable by state-of-the-art Mg-isotope measurements. For example, accepting the initial 26Al/27Al ratio [(26Al/27Al)0] of 5.23 × 10−5 (Jacobsen et al. 2008), the amount of radiogenic 26Mg resulting from the in situ decay of 26Al [μ26Mg* = ((26Mg/24Mg)sample/(26Mg/24Mg)standard − 1) × 106] in a reservoir with solar 27Al/24Mg ratio of 0.101 is only 38 ppm (Figure 1(a)). As a result, an uncertainty of ±10 ppm in measurements of the μ26Mg* value in samples of meteorites with an approximately solar 27Al/24Mg ratio could conceal a heterogeneity of up to 50% in (26Al/27Al)0 (Figure 1(a)). Moreover, the recent discovery of variable U-isotope compositions of early solar system solids (Brennecka et al. 2010) clouds the accuracy of 207Pb–206Pb ages used to infer consistency with the 26Al–26Mg chronometer.

Figure 1.

Figure 1. Al–Mg evolution diagrams. (a) Assuming a canonical (26Al/27Al)0 of 5.23 × 10−5, the amount of radiogenic 26Mg resulting from the in situ decay of 26Al (μ26Mg*) in a reservoir with solar 27Al/24Mg is only 38 ppm. Thus, the intercept of an 26Al–26Mg isochron with the canonical 26Al/27Al ratio should be −38 ppm, assuming 26Al homogeneity (inset). (b) Al–Mg isochron for bulk AOAs and CAIs from the reduced chondrite Efremovka. (c) The bulk Efremovka CAI–AOA isochron intercepts the solar 27Al/24Mg at μ26Mg* = 22.2 ± 1.4 ppm, whereas CI chondrites define a μ26Mg* value of 4.5 ± 1.0 ppm. Except where shown, the error bars are smaller than symbols. Regression parameters were calculated using the external reproducibility or internal precision, whichever is larger. Fo: forsterite.

Standard image High-resolution image

To understand the degree of 26Al homogeneity in the solar protoplanetary disk, we have developed analytical protocols allowing the measurements of the μ26Mg* value and 27Al/24Mg ratios in meteorites by high-resolution multi-collector inductively coupled plasma source mass spectrometry (HR-MC-ICPMS) with an external reproducibility of 2.5 ppm and 0.5%, respectively (Bizzarro et al. 2011; Paton et al. 2011). Using these techniques, we report bulk Mg-isotope and 27Al/24Mg ratio measurements of a representative suite of inner solar system objects, including CAIs and amoeboid olivine aggregates (AOAs) from the reduced CV (Vigarano type) chondrite Efremovka as well as a number of primitive and differentiated meteorites.

2. μ26Mg* HETEROGENEITY IN BULK SOLAR SYSTEM RESERVOIRS

The mineralogy, petrology, and oxygen isotopic compositions of CAIs and AOAs from primitive chondrites suggest a close genetic relationship between these objects. CAIs are formed by evaporation, condensation, and, in some cases, subsequent melting of refractory dust (MacPherson 2003). The CAI-forming processes occurred in an 16O-rich ($\Delta ^{17}{\rm O} \sim -25\permil$) region with high ambient temperature, at or above the condensation temperature of forsterite (∼1300 K; Krot et al. 2009). AOAs are aggregational objects composed of 16O-rich ($\Delta ^{17}{\rm O} \sim -25\permil$) forsterite condensates and CAIs; they have avoided significant melting (MacPherson et al. 2005). The temperatures inferred for the formation region of CAIs and AOAs are expected to have been reached in the innermost part of the protoplanetary disk during the initial stages of the solar system formation (Tscharnuter et al. 2009; Ciesla 2010). Thus, CAIs and AOAs can be used collectively to define the initial 26Al/27Al ratio and initial Mg-isotope composition (μ26Mg0) in this region of the protoplanetary disk.

Bulk analyses of four AOAs (E1s, E2s, E3s, E4s) and four CAIs of different types (one fine-grained spinel-rich (22E), one Type B (E48), and two Type As (E104, 31E)) from the Efremovka CV chondrite define a line with a slope of (5.252 ± 0.019) × 10−5 and initial μ26Mg0 value of −15.9 ± 1.4 ppm (Figures 1(b) and (c)). We also analyzed AOA material mantling the E48 and E104 inclusions (i.e., forsterite-rich accretionary rims; Krot et al. 2002). The physical relationship between forsterite-rich accretionary rims and CAIs and their identical 16O-rich compositions indicate that both types of objects are formed in the same reservoir. The E48 and E104 forsterite-rich accretionary rims plot on the bulk CAI–AOA isochron (Figure 1(c)) thereby confirming the contemporaneous formation of these AOAs and CAIs and, therefore, the validity of collectively using these objects to define the initial 26Al/27Al ratio and μ26Mg0 value of the CAI- and AOA-forming region. We interpret the bulk CAI–AOA line as an 26Al–26Mg isochron corresponding to the timing of Al/Mg fractionation prior to and/or during formation of the Efremovka CAIs and AOAs by evaporation, condensation, and evaporative melting. The error on the slope of this isochron corresponds to an age uncertainty of ∼4000 years, suggesting a very short duration of these fractionation events. We interpret the intercept of this isochron (μ26Mg0) as representing the initial Mg-isotope composition of the solar system. The slope of the 26Al–26Mg isochron is in agreement with the canonical 26Al/27Al ratio of (5.23 ± 0.13) × 10−5 inferred from bulk measurements of CAIs from the oxidized CV chondrite Allende (Jacobsen et al. 2008). The initial μ26Mg0 value of −15.9 ± 1.4 ppm inferred from the Efremovka CAI–AOA isochron is significantly different from the value of −38 ppm predicted for a uniform distribution of 26Al in the solar system (Figure 1).

The μ26Mg* value of the Efremovka CAI–AOA isochron at a solar 27Al/24Mg ratio of 0.101 is 22.2 ± 1.4 ppm. If the μ26Mg0 and (26Al/27Al)0 inferred from the CV CAIs and AOAs are representative of the entire solar system, then solar system materials preserving the solar 27Al/24Mg ratio are predicted to have an identical μ26Mg* value of ∼22 ppm. To test this prediction, we measured the bulk Mg-isotope compositions of three CI (Ivuna type) carbonaceous chondrites (Alais, Ivuna, and Orgueil), which are considered to be the most chemically pristine solar system materials: they have solar abundances of most elements as well as solar 27Al/24Mg ratio (Asplund et al. 2009). The bulk Mg-isotope compositions of CI chondrites have an average μ26Mg* value of 4.5 ± 1.0 ppm, which is significantly lower than the μ26Mg* value of 22.2 ± 1.4 ppm defined by the Efremovka CAI–AOA isochron at a solar 27Al/24Mg ratio (Figure 1(c)).

We also measured bulk Mg-isotope compositions and 27Al/24Mg ratios of one enstatite chondrite, four ordinary chondrites, one R-chondrite, one acapulcoite, two angrites, two ureilites, and one Martian shergottite. The meteorite samples from differentiated asteroids analyzed here are believed to have formed >5 Myr after solar system formation (Amelin 2005, 2007; Goodrich et al. 2010). Thus, the bulk Mg-isotope compositions of these meteorites are not significantly affected by Al/Mg fractionation event(s) associated with their formation. None of the whole-rock Mg-isotope analyses of these meteorites approach the μ26Mg* value of 22 ppm predicted by the CV CAI–AOA isochron and uniform distribution of 26Al and μ26Mg0. Instead, these record μ26Mg* values that are lower by 4–12 ppm compared to CI chondrites (Figure 2(a)).

Figure 2.

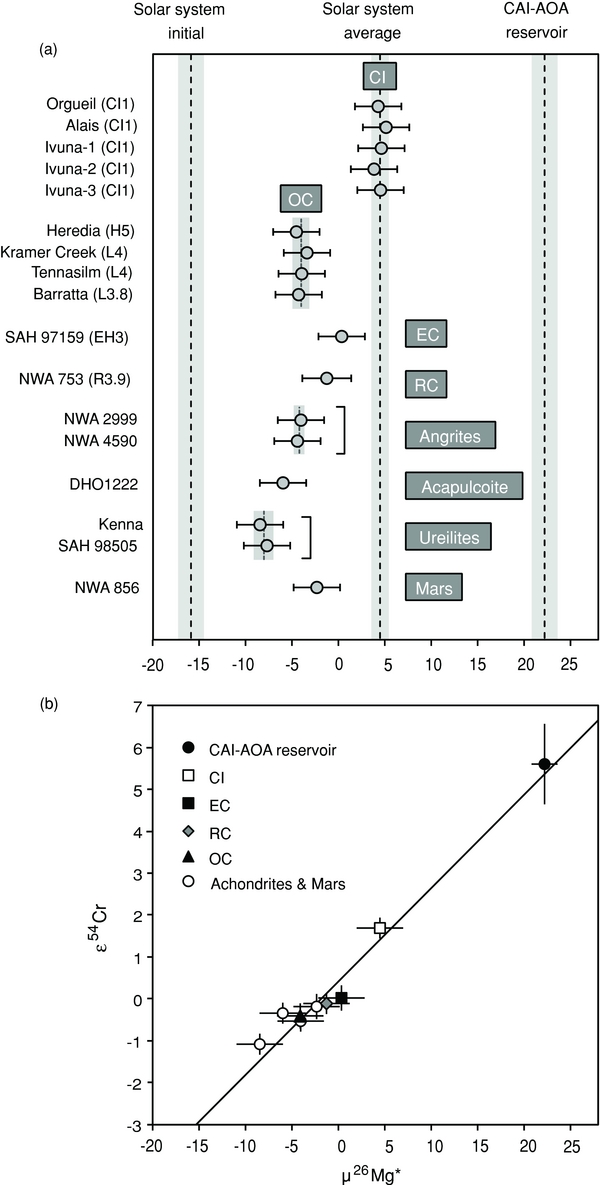

Figure 2. (a) μ26Mg* values for primitive (chondritic) and differentiated asteroids and inner solar system planets. (b) Inner solar system μ26Mg*–epsilon54Cr correlation. epsilon54Cr values are expressed as parts per 10,000 deviations from the terrestrial value. Error bars represent the external reproducibility or internal precision, whichever is larger.

Standard image High-resolution image

3. SIGNIFICANCE OF THE $\boldsymbol{\mu }^{\bf 26}$Mg* HETEROGENEITY

It is possible that the elevated μ26Mg* value of 22.2 ± 1.4 ppm at the solar 27Al/24Mg ratio defined by the CAI–AOA regression reflects a pre-history of elevated 27Al/24Mg ratio for the CAI- and AOA-forming reservoir as a whole. Although evaporation and condensation processes can fractionate Al from Mg, the mineralogy and bulk chemistry of CAIs and AOAs are consistent with formation in a region with approximately solar composition (Grossman et al. 2000). Even allowing for a 15% increase in the 27Al/24Mg ratio of the CAI-forming region relative to the solar value requires timescales in the order of 1.5 Myr to produce the offset of 22.2 ± 1.4 ppm in CAIs and AOAs. Such an extended pre-history of the CAI- and AOA-forming reservoir is absent from the meteorite record and is inconsistent with the brief interval of ∼4000 years for the formation of these objects. Likewise, the observed variations in μ26Mg* values of chondritic meteorites cannot be uniquely explained by Al/Mg fractionation events. For example, R and CI chondrites have nearly identical 27Al/24Mg ratios (Table 1), yet their μ26Mg* values are different by 5.9 ± 2.6 ppm. Similarly, only 2.6 ppm of the observed 8.6 ± 1.4 ppm difference between the average μ26Mg* values of the CI and ordinary chondrites could be attributed to Al/Mg fractionation given the difference in their 27Al/24Mg ratios. Thus, we rule out a pre-history of elevated 27Al/24Mg in the CAI–AOA-forming reservoir and Al/Mg fractionation events to account for the μ26Mg* heterogeneity.

Table 1. Mg and 54Cr Isotope Composition of Inner Solar System Materials

Sample Type of Material 27Al/24Mg μ26Mg* μ25Mg μ26Mg N epsilon54Cr
31E Bulk CAI 3.133 ± 0.016 1164.3 ± 2.7 5952 ± 18 12870 ± 41 10 6.80 ± 1.20
22E Bulk CAI 3.336 ± 0.017 1244.8 ± 1.7 −2405 ± 7 −3454 ± 19 10
E104 Bulk CAI 2.880 ± 0.058 1063.8 ± 4.0 −1031 ± 6 −950 ± 19 4
E48 (1) Bulk CAI 2.856 ± 0.057 1059.7 ± 3.5 12055 ± 14 24823 ± 29 5
E48 (2) Bulk CAI 2.674 ± 0.013 991.6 ± 4.1 10140 ± 9 20960 ± 22 6
AR-E48 Fo-rich AR 0.03075 ± 0.0005 −5.6 ± 8.0 −1148 ± 18 −2239 ± 38 4
AR-E104 (1) Fo-rich AR 0.08501 ± 0.0013 21.6 ± 8.0 −1904 ± 9 −3696 ± 25 5
AR-E104 (2) Fo-rich AR 0.09237 ± 0.0014 23.8 ± 8.0 −2436 ± 31 −4735 ± 58 5
E1s (1) Bulk AOA 0.1100 ± 0.0006 26.2 ± 2.1 −1476 ± 8 −2855 ± 21 10 5.40 ± 0.40
E1s (2) Bulk AOA 0.1330 ± 0.0007 33.2 ± 1.9 −1570 ± 11 −3029 ± 27 10
E2s Bulk AOA 0.3075 ± 0.0024 100.1 ± 3.6 −2465 ± 9 −4709 ± 21 7
E3s Bulk AOA 0.3686 ± 0.0018 120.4 ± 3.0 −1270 ± 9 −2355 ± 19 10
E4s Bulk AOA 0.0756 ± 0.0004 16.1 ± 3.2 −29 ± 14 −32 ± 29 6
Ivuna (1) CI 0.0977 ± 0.0004 4.6 ± 1.8 −147 ± 8 −276 ± 21 10 1.69 ± 0.25
Ivuna (2) CI   3.8 ± 1.0 −136 ± 9 −258 ± 21 10
Ivuna (3) CI   4.5 ± 2.3 −109 ± 10 −200 ± 22 10
Orgueil CI 0.1030 ± 0.0005 4.3 ± 2.2 −143 ± 6 −277 ± 12 10
Alais CI 0.0988 ± 0.0005 5.1 ± 2.4 −143 ± 5 −276 ± 10 10
SAH 97159 EC 0.0852 ± 0.0004 0.3 ± 1.9 −130 ± 17 −250 ± 37 50
NWA 753 RC 0.0977 ± 0.0005 −1.3 ± 2.3 −159 ± 15 −298 ± 31 9 −0.11 ± 0.25
NWA 856 Mars 0.596 ± 0.003 −2.3 ± 1.8 −134 ± 6 −258 ± 18 10
Kramer Creek OC 0.0856 ± 0.0004 −3.4 ± 1.7 −183 ± 8 −355 ± 20 10
Tennasilm OC 0.0811 ± 0.0004 −4.0 ± 1.2 −157 ± 13 −308 ± 23 10
Barratta OC 0.0869 ± 0.0004 −4.3 ± 1.7 −172 ± 6 −333 ± 18 10
Heredia OC 0.0819 ± 0.0004 −4.5 ± 2.1 −162 ± 8 −314 ± 21 10
NWA2999 Angrite 0.505 ± 0.003 −4.1 ± 1.7 −4 ± 12 −5 ± 27 10 −0.53 ± 0.25
NWA4590 Angrite 2.72 ± 0.01 −4.4 ± 2.0 −147 ± 11 −285 ± 24 10
DHO1222 Acapulcoite 0.0878 ± 0.0004 −6.0 ± 1.3 −129 ± 8 −251 ± 21 10 −0.34 ± 0.25
Kenna Ureilite 0.0059 ± 0.0001 −8.5 ± 1.1 −92 ± 8 −180 ± 22 10 −1.08 ± 0.25
SAH98505 Ureilite 0.0113 ± 0.0002 −7.7 ± 1.6 −101 ± 10 −199 ± 25 10

Notes. Analytical uncertainties for the μ26Mg*, μ25Mg, and μ26Mg values are quoted at the 2se level. For the epsilon54Cr measurements, acquired following techniques outlined in Trinquier et al. (2008), the uncertainty reported is the external reproducibility of 25 ppm or internal error, whichever is larger. For the enstatite and ordinary chondrites as well as for the Martian shergottite, we used the values of Trinquier et al. (2007) obtained for the same meteorite groups. AR: accretionary rim; Fo: forsterite; EC: enstatite chondrite; OC: ordinary chondrite; RC: R-chondrite; N: number of acquisitions.

Download table as:  ASCIITypeset image

Large-scale nucleosynthetic isotopic heterogeneity exists among inner solar system solids, planets, and asteroids, most noticeably for neutron-rich isotopes of the iron-group elements such as 48Ca, 50Ti, 54Cr, and 64Ni (Birck 2004), and are interpreted as reflecting heterogeneous distribution of presolar components in the solar protoplanetary disk (Rotaru et al. 1992; Trinquier et al. 2007). Two views are considered for the origin of the solar system's 54Cr heterogeneity: an ancient galactic component dominated by input from rare type Ia supernovae (Clayton 2003; Meyer et al. 1996) or, alternatively, heterogeneous seeding of the nascent solar system from a recent event, possibly a nearby massive star (Dauphas et al. 2010; Qin et al. 2011). The excesses and deficits in μ26Mg* we find for primitive and differentiated meteorites as well as for the bulk CAI–AOA reservoir correlate with the 54Cr abundance for the same samples or meteorite groups (Figure 2(b)). The preservation of a correlation between μ26Mg* and 54Cr suggests that the majority of the μ26Mg* variability can be ascribed to a single cause: either 26Al heterogeneity in the precursor material of the various solar system reservoirs or nucleosynthetic Mg-isotope heterogeneity unrelated to the decay of 26Al. Although Mg-isotope anomalies of nucleosynthetic origin were reported in rare 26Al-poor inclusions (Sahijpal & Goswami 1998), mass balance calculations indicate that the potential presence of these anomalous components in chondritic meteorites will not affect their bulk Mg-isotope composition beyond the resolution of our analyses. Contrary to 54Cr, which has multiple nucleosynthetic origins (Clayton 2003; The et al. 2007), all three Mg isotopes are coproduced during hydrostatic nucleosynthesis in massive stars (Arnett & Thilelemann 1985; Thilelemann & Arnett 1985), with the production of 25Mg and 26Mg increasing with stellar metallicity (Woosley & Weaver 1995). Therefore, if the solar system's 54Cr heterogeneity represents an old, galactically inherited component, then preservation of a simple binary mixing relationship between μ26Mg* and epsilon54Cr is difficult to reconcile with widespread Mg-isotope heterogeneity as the main source of variability in μ26Mg*.

In contrast to the solar system's bulk Mg-isotope composition, the initial 26Al/27Al recorded by the Efremovka CAIs and AOAs cannot be explained by the expected contribution from the background abundances of 26Al in the galaxy (Huss et al. 2009). This requires an input of freshly synthesized stellar material prior to or during the collapse of the protosolar molecular cloud to account for the totality of the solar system's inventory of 26Al. Given that the massive stars that synthesize 26Al also produce copious amounts of 54Cr compared to the remaining Cr isotopes (The et al. 2007), the correlation we report in Figure 2(b) is most easily understood if it reflects variable incorporation of debris from a nearby stellar event that produced and delivered 26Al and 54Cr to the nascent solar system or, alternatively, contamination of the protosolar molecular cloud by a previous generation(s) of massive stars. This is consistent with the discovery of 54Cr-rich grains of supernova origin in primitive meteorites (Dauphas et al. 2010; Qin et al. 2011). Because the Mg-isotope composition of supernova ejecta can be highly variable (Gyngard et al. 2010), it is possible that the μ26Mg* heterogeneity reported here represents the cumulative effect of both Mg-isotope and 26Al heterogeneity. However, it is unclear how a late addition of freshly synthesized stellar material to the nascent solar system would result in a homogeneous distribution of 26Al, but a heterogeneous distribution of Mg isotopes. As such, the discovery of widespread μ26Mg* heterogeneity in solar system objects is a highly significant finding, as it requires that some—if not all—of the μ26Mg* variability can be attributed to 26Al heterogeneity. Although quantifying the extent of 26Al heterogeneity solely based on our Mg-isotope measurements is difficult, we note that the magnitude of the μ26Mg* heterogeneity observed across solar system reservoirs (30.3 ± 1.8 ppm) is within the range of expected variations resulting from 26Al heterogeneity (up to 38 ppm).

4. TESTING FOR 26Al HETEROGENEITY IN THE SOLAR PROTOPLANETARY DISK

If the totality of the μ26Mg* variability is related to 26Al heterogeneity, it is possible to estimate the initial 26Al abundance in the accretion regions of asteroids and planets by comparing their present-day μ26Mg* with the initial μ26Mg0 defined by the CAI–AOA isochron and its intercept at the solar 27Al/24Mg ratio. In Table 2, we show that if this assumption is valid, then large-scale heterogeneity—up to 80% reduction of the canonical 26Al/27Al ratio—may have existed throughout the inner solar system. The CI chondrites record an initial 26Al/27Al ratio of ∼2.8 × 10−5, that is, approximately 54% of the value defined by Efremovka CAIs and AOAs. Thus, the CV CAI- and AOA-forming reservoir was characterized by an enhanced initial abundance of 26Al compared to the average value of solar system material defined by CI chondrites, whereas the accretion regions of the terrestrial planets, ordinary chondrites, angrites, acapulcoites, and ureilites record variable depletions in 26Al.

Table 2. Initial 26Al/27Al Ratios of Bulk Solar System Reservoirs

Reservoir/Parent Body μ26Mg* (26Al/27Al)0
CV CAI- and AOA-forming reservoir 22.2 ± 1.4 (5.25 ± 0.02) × 10−5
CI chondrite PB 4.5 ± 1.1 (2.81 ± 0.30) × 10−5
Enstatite chondrite PB 0.3 ± 1.9 (2.24 ± 0.38) × 10−5
Ordinary chondrite PB −4.1 ± 1.2 (1.63 ± 0.25) × 10−5
Angrite PB −4.2 ± 1.7 (1.61 ± 0.32) × 10−5
Ureilite PB −8.1 ± 1.7 (1.08 ± 0.29) × 10−5

Notes. The μ26Mg* and initial 26Al/27Al values of the CAI–AOA reservoir were calculated from the isochron relationship of Figure 1(b). For primitive and differentiated parent bodies, the μ26Mg* values are the averages and associated uncertainties (2 sd) of the samples representing individual meteorite groups. The (26Al/27Al)0 values are calculated as deviations from the CAI–AOA value, assuming that all reservoirs are formed from the solar 27Al/24Mg ratio. PB, parent body.

Download table as:  ASCIITypeset image

Rigorously testing whether the μ26Mg* variability primarily reflects 26Al heterogeneity can be achieved by comparing high-precision U–Pb and 26Al–26Mg ages of pristine solar system materials, given that the U–Pb chronometer provides absolute ages that are free from assumptions of parent nuclide homogeneity. The validity of this approach, however, requires that both the U–Pb and 26Al–26Mg chronometers date the same event. We focus our discussion on the age difference between the CAI SJ101 (Amelin et al. 2011) and the SAH99555 angrite (Connelly et al. 2008b). SJ101 is the only CAI dated by the Pb–Pb method for which the U-isotope composition has been measured and currently defines the absolute age of CAIs. The SAH99555 angrite is one of the most pristine basaltic meteorites and has been dated via both the Pb–Pb and 26Al–26Mg methods by a number of groups (Connelly et al. 2008b; Amelin 2008; Schiller et al. 2010). Given the lack of U data for this meteorite, we measured the U-isotope composition of SAH99555 by HR-MC-ICPMS (Table 3). Based on the U–Pb system, we calculate an age difference of 3.57 ± 0.54 Myr between the formation of SJ101 and crystallization of SAH99555, which is not compatible with the age difference of 5.02+0.15− 0.13 Myr inferred from the 26Al–26Mg system for these two objects. Given the short duration of the CAI-forming process inferred from our study and the consistency in the Pb–Pb age of the SAH99555 meteorite obtained by different studies (Connelly et al. 2008b; Amelin 2008), it is unlikely that this age difference reflects selective disturbance of the isotopic chronometers. Rather, it is consistent with our proposal that the CAI-forming reservoir was characterized by an enhanced abundance of 26Al compared to the accretion region of the angrite parent body. To reconcile the mismatch between the U–Pb and 26Al–26Mg ages of SJ101 and SAH99555, the initial abundance of 26Al in the accretion region of the angrite parent body is required to be reduced by 57%–85% of the 26Al/27Al value present in the CAI-forming reservoir, considering the uncertainties of the U–Pb ages. This is consistent with our independent estimate of 69% based on the Mg isotopes, which corresponds to an initial 26Al/27Al of ∼1.6 × 10−5 for the angrite parent body and relative 26Al–26Mg age of 3.78 ± 0.23 Myr for SAH99555, and is in excellent agreement with its U–Pb age. We conclude that the bulk of the μ26Mg* variability documented here reflects heterogeneity in the abundance of 26Al across the solar protoplanetary disk at the time of CAI formation.

Table 3. U-isotope Composition of the SAH99555 Angrite

Sample Type of Material 238U/235U
SAH99555 Angrite 137.791 ± 0.011
BHVO-2 (a) Terrestrial basalt 137.798 ± 0.011
BHVO-2 (b) Terrestrial basalt 137.797 ± 0.011

Notes. U-isotope measurements were acquired by HR-MC-ICPMS based on protocols outlined in Weyer et al. (2008), and reported relative to CRM112a (238U/235U = 137.844; Condon et al. 2010). Two sample digestions of the BHVO-2 rock standard yielded identical 238U/235U values to that previously reported by Weyer et al. (2008). Uncertainties represent the external reproducibility.

Download table as:  ASCIITypeset image

5. EARLY SOLAR SYSTEM PROCESSES AND THEIR CHRONOLOGY

Covariations in 54Cr and 50Ti among inner solar system objects have been ascribed to thermal processing of molecular cloud material, which resulted in preferential loss by sublimation of thermally unstable and isotopically anomalous presolar carriers, producing residual isotopic heterogeneity (Trinquier et al. 2009). The initial abundances of 26Al in solar system reservoirs determined here resonate with their 54Cr composition, suggesting that the 26Al heterogeneity may have been established in a comparable way. This is consistent with a late-stage pollution of the nascent solar system from supernova debris as suggested by the μ26Mg*–epsilon54Cr correlation, but only if this occurred prior to the collapse of the protosolar molecular cloud. Thus, we propose that the 26Al heterogeneity in solar system objects reflects variable degrees of thermal processing of their precursor material, probably associated with volatile-element depletions in the inner solar system. In this view, CAIs and AOAs represent samples of the complementary gaseous reservoir enriched in 26Al by thermal processing, which resulted in the widespread 26Al depletions observed among the inner solar system bodies. This implies the existence of a presolar carrier enriched in 26Al among solar system materials, perhaps a presolar silicate, inherited from the protosolar molecular cloud.

The observation of 26Al heterogeneity in the solar protoplanetary disk suggests that the 26Al–26Mg system cannot be readily used to deduce accurate chronologies of solar system events. Thus, current models for the formation and earliest evolution of our solar system based on the 26Al–26Mg chronometer require important revision. For example, the so-called canonical 26Al/27Al ratio of ∼5.2 × 10−5 is typically used to infer the nature of the stellar source that delivered 26Al to the nascent solar system (Meyer 2005). However, our results suggest that the solar system's initial 26Al inventory is best approximated by the 26Al/27Al ratio of ∼2.8 × 10−5 defined by CI chondrites (Table 1). A reduced initial abundance of 26Al among some solar system reservoirs may impact the role of this radionuclide as a heat source for asteroid differentiation. However, we note that, assuming no heat loss and accretion contemporaneous with CAI formation, the amount of energy resulting from the decay of 26Al in a body with a (26Al/27Al)0 ratio of 1 × 10−5 is ∼1.2 kJ g−1, which is 75% of the energy required to completely melt a chondritic body (Hevey & Sanders 2006); this would lead to the formation of an asteroid-wide magma ocean.

The existing 26Al–26Mg data for chondrules from unequilibrated ordinary chondrites (UOCs) require an age gap of ∼1.5 Myr between the formation of CAIs and chondrules (Kurahashi et al. 2008), assuming a uniform distribution of 26Al in the solar system at the value of ∼5.2 × 10−5. Recalculating the 26Al–26Mg ages of the UOCs' chondrules using the initial 26Al/27Al ratio of ∼1.6 × 10−5 inferred for the accretion region of ordinary chondrites (Table 1) reduces the gap and suggests that ordinary chondrite chondrule formation started almost contemporaneously with the CV CAIs and AOAs. Thus, chondrule formation may have been a punctuated, recurrent process active during the entire life span of the solar protoplanetary disk.
