Climate system properties determining the social cost of carbon

The warming induced by a pulse injection of an idealized greenhouse gas x whose concentrations decay exponentially with rate constant k_x into an idealized climate system [23] with a linear concentration–forcing relationship, a single effective heat capacity per unit area C_e, and sensitivity parameter λ (λ is the net additional energy radiated to space per degree of warming accounting for feedbacks) is given by the absolute global temperature potential:

$$\begin{eqnarray} &&{\mathrm{AGTP}}^{x}(t)=\frac{{F}_{x}}{{C}_{\mathrm{e}}}\frac{({\mathrm{e}}^{-{k}_{x}t}-{\mathrm{e}}^{-{k}_{\tau }t})}{{k}_{\tau }-{k}_{x}}, \end{eqnarray} \tag{ 1 }$$

where k_τ = λ/C_e is the thermal rate constant (inverse feedback response time [17]) and F_x is the forcing immediately after injection. Climate change damage are often assumed as D(T) = aT^b. We linearize economic damage for analytic simplicity by assuming a constant percentage reduction in global consumption per degree of warming, D'. This is not as restrictive as it appears, as for most baseline emissions scenarios, the impact of increasing the damage exponent on the response to a small pulse emission is similar to decreasing the discount rate: both increase the weight given to impacts further in the future when the baseline warming is higher (see appendix B). Additionally using an exponential rate of consumption growth, g, and discount rate r (at which we discount absolute future damage), the discounted present value of climate damage attributable to that pulse emission, or SCC, is:

$$\begin{eqnarray} {\mathrm{SCC}}^{x}&=&{D}^{\prime}\int \nolimits _{t=0}^{\infty }{\mathrm{AGTP}}^{x}(t){\mathrm{e}}^{-{k}_{\mathrm{D}}t}\mathrm{d}t\nonumber\\ &=&\frac{{F}_{x}{D}^{\prime}}{{C}_{\mathrm{e}}}\int \nolimits _{t=0}^{\infty }\frac{({\mathrm{e}}^{-{k}_{x}t}-{\mathrm{e}}^{-{k}_{\tau }t}){\mathrm{e}}^{-{k}_{\mathrm{D}}t}}{{k}_{\tau }-{k}_{x}}\mathrm{d}t, \end{eqnarray} \tag{ 2 }$$

where the discount factor k_D = r − g is the rate at which we discount future damage if expressed as percentage changes in consumption. In the conventional Ramsey model [24], k_D = (η − 1)g + ρ, where η is a constant representing relative risk (or inequality) aversion and ρ is the pure rate of time preference. Integration the right-hand side of equation (2) yields:

$$\begin{eqnarray} {\mathrm{SCC}}^{x}&=&\frac{{F}_{x}{D}^{\prime}}{{C}_{\mathrm{e}}({k}_{x}+{k}_{\mathrm{D}})({k}_{\tau }+{k}_{\mathrm{D}})}\nonumber\\ &=&\frac{{F}_{x}{D}^{\prime}}{{F}_{2 x}({k}_{x}+{k}_{\mathrm{D}})[(\mathrm{ECS})^{-1}+{k}_{\mathrm{D}}{C}_{\mathrm{e}}({F}_{2 x})^{-1}]}, \end{eqnarray} \tag{ 3 }$$

where F_2x is the forcing due to CO₂ doubling. The SCC is separable into a response to emissions, determined by rate of decay of the emission pulse k_x, and a response to forcing, determined by k_τ, which is inversely proportional to ECS [17]. For large values of ECS k_τ becomes small (i.e. k_τ ≪ k_D,) except for very low values of k_D, making SCC almost independent of ECS in this 'fat tail' situation.

A better predictor of SCC is given by the transient climate response (TCR), defined as the temperature increase following a constant compound increase in CO₂ concentrations, normalized by the percentage rate of increase per year. TCR is normally defined for a 1% increase, making 70 years the point of doubling, but like ECS the concept applies to more general scenarios. In this simple framework:

$$\begin{eqnarray} &&\mathrm{TCR}=\mathrm{ECS}-\frac{(\mathrm{ECS})^{2}}{2{T}_{0}}\left [1-{\mathrm{e}}^{-\frac{2{T}_{0}}{\mathrm{ECS}}}\right ]\approx \frac{1}{(\mathrm{ECS})^{-1}+{T}_{0}^{-1}},\nonumber\\ \end{eqnarray} \tag{ 4 }$$

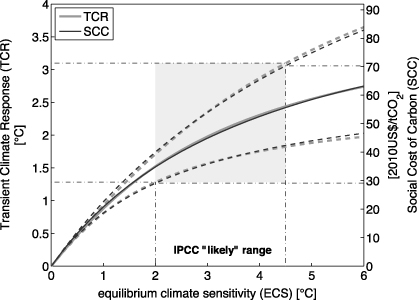

where T₀ = F_2xt₀/2C_e is the TCR in the absence of any feedback (λ = 0), with t₀ = 70 yr (first equality in equation (4) from equation (6) in [17], approximation found from a Taylor expansion). Comparing equations (3) and (4), it is clear that SCC is approximately proportional to TCR provided the rate at which we discount future damage is equal to double the inverse timescale of CO₂ doubling: k_D = 2/t₀ = 2.8% yr⁻¹. The validity of the approximation for TCR (right-hand side of equation (4)) is tested in figure 1, which compares the functional forms of SCC and TCR (left-hand side of equation (4)) in ECS for this value of k_D and three representative values of C_e.

Zoom In Zoom Out Reset image size

The right-hand side of equation (3) is the product of a term that depends on gas properties and a term that depends on climate system properties. This is potentially very useful in applying this concept to other gases. Note that the very long term response summarized by the ECS is even less relevant to the response to emissions of short-lived species like methane.

Going beyond this special case in which the social costs of carbon are directly proportional to TCR instead of ECS we apply an independent model to investigate how much could be learned about the true value of SCC from gaining perfect knowledge about either ECS or TCR. Thereby we are relaxing the strict artificial assumptions of linear damage and a linear concentration–forcing relationship and replace them by polynomial damage with variable exponents and a carbon cycle model.

It should be noted, however, that (a) we are treating the damage function and discounting as fixed and known, only investigating sensitivity in a Monte Carlo analysis, and that (b) this setup is artificial in that learning about one of the quantities via future observations would lead to gains in knowledge about the other quantity as well. However, as the difference between TCR and ECS stems from the deep ocean heat uptake on longer timescales, the uncertainty about this difference would not be reduced by mid-term observations of atmospheric conditions [25] (i.e. only the TCR part of ECS would be reduced). Nevertheless, the result will allow us to evaluate which of the two is a better predictor for the social cost of carbon.

Using a simple numerical carbon-cycle–climate model [19], we generate a large ensemble of temperature profiles for an RCP4.5 emission scenario (extended to 1765–2300) [26], representing a 'mitigation policy future', and for a RCP4.5 baseline amended by an emission pulse of 10 Gt of carbon as CO₂ in 2012. Following [19], we focus on the response to CO₂ only. Inclusion of non-CO₂ warming would increase the effective damage exponent for the response to a pulse injection, but should not affect our overall conclusions (see appendix B for a sensitivity analysis w.r.t. stronger pulses and higher background emissions, both of which can be seen as representing additional non-CO₂ warming).

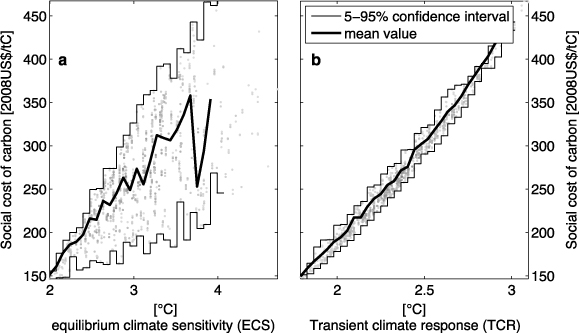

The differences between the ensemble members stem from sampling five uncertain parameters within the carbon cycle and the temperature response. The resulting 5–95% confidence intervals in ECS and TCR are 2.0–5.2 ° C and 1.6–3.0 ° C respectively. For each of the scenarios we calculate the social cost of carbon of the additional 10 GtC emission pulse. Figure 2 shows the SCC as a function of ECS and TCR in the resulting ensemble for a quadratic damage function and k_D = 2.8%.

Zoom In Zoom Out Reset image size

TCR is clearly a better predictor of SCC than ECS: on average, the 5–95% confidence interval is 50% of the mean value of SCC for each value of the abscissa in panel (a), and 11% in panel (b). Under these assumptions, learning the value of TCR reduces fractional uncertainty in SCC by 39 percentage points more than learning the value of ECS.

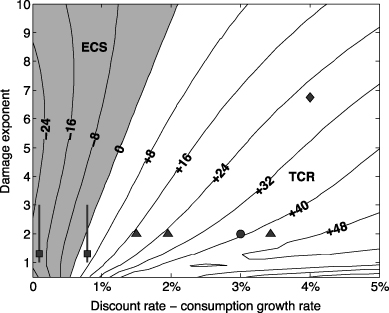

Figure 3 quantifies how TCR and ECS compare as predictors of SCC by plotting this relative reduction in fractional uncertainty for a range of discount rates and damage functions; e.g. a +24 means that learning about TCR instead of ECS would reduce relative uncertainty (in percentage of the mean value) of SCC by 24 percentage points more (e.g. by 54% rather than by 30%).

Zoom In Zoom Out Reset image size

Using TCR as proxy for SCC is better than using ECS when the difference between discount rate and consumption growth rate is more than about 1% (un-shaded region), though this level increases as the damage exponent rises (see appendix B). Proponents of very low discount rates, and those who believe climate change threatens the levels of consumption growth that the world has enjoyed over the last two hundred years, may find ECS more relevant. Those who think consumption growth is likely to continue much as it has for the last two hundred years, who also use conventional discount rates, will find that TCR outperforms ECS as a predictor for SCC.

The markers in figure 3 represent the discount rates and damage functions used by three prominent groups within the integrated assessment community [2, 11, 22] and the settings used in figure 2. By way of context, recent work quantifying social discount rates in major OECD economies [27] implies 1.6≤k_D ≤ 2.8, while for major (populations over 15 million) Latin American countries [28] corresponding values are in the range 1.5 ≤ k_D ≤ 6.1, even under modest, historically based assumptions about future growth. The lower bounds of these sorts of ranges would require damage exponents in excess of 6 before ECS would outperform TCR as a proxy for SCC.

For most of these settings, representation of climate uncertainty by the fatter-tailed ECS parameter is misleadingly pessimistic, in that it over-represents climate response uncertainty in SCC (notwithstanding other uncertainties from damage, economic projections, discounting, etc) and underestimates opportunities for reducing climate response uncertainty through future observations. We suggest that those who wish to estimate or use SCC should consider which climate response parameter (TCR or ECS) is most informative and appropriate, given the other assumptions under which they are working. Except where they are choosing very low discount rates or unusually high damage exponents, TCR will be the more appropriate choice.

The analytic results are deduced from the simplifying assumptions about the carbon cycle and temperature response to emissions (carbon only), the exponential pulse of emissions, and the linear climate damage. For the numerical analysis of the social cost of carbon from RCP4.5 baseline emissions amended by a 10 GtC emission peak in 2012, we used a simple coupled climate carbon cycle model [19, 29] with five uncertain parameters: Climate sensitivity, ocean thermal diffusivity, ocean/biosphere carbon diffusivity, rate of advection of carbon into the deep ocean, and the carbon cycle temperature feedback parameter. The five parameters are randomly sampled within boundaries given by observations [19]. The boundary of our ensemble is chosen to represent the 5–95% confidence interval of an underlying normal distribution, representing the 'IPCC's very likely' category [30]. The panels in figure 2 are produced by calculating the social costs of carbon for all of the ensemble scenarios and for a given set of growth, discounting and damage assumptions and projecting them against the corresponding values of ECS and TCR. For quantifying the predictor quality of TCR versus ECS this calculation is repeated for a large set of damage exponents and discount and growth rates. We calculate the fractional uncertainty left when perfectly knowing ECS (or TCR), take the expected value over all possible ECS (TCR) values, and compare it to the original fractional uncertainty in the full SCC ensemble. The difference of this indicator of expected percentage reduction of fractional uncertainty in SCC between learning about TCR and ECS is shown in figure 3 (see appendix A for details).

The authors declare no competing financial interests.

Author contributions

MRA and DJF provided the simple climate model. MRA and BJT conceived of and developed the analytic argument. NB generated the parameter ensemble for the numeric modelling. AO ran the simple climate model, conducted the numeric SCC calculations and produced figures 2 and 3. All authors contributed to writing the paper.

Throughout the paper and the appendices the terms uncertainty and risk are used synonymously, describing a random variable with a known probability distribution function or a given confidence interval.

Let Y = Y(X),X = (x₁,...,x_i,...,x_j,...,x_n) represent an ensemble of values for the social cost of carbon (SCC) depending upon n = 5 uncertain parameters in the climate cause–effect chain, with x_i representing equilibrium (or in this case, effective [17]) climate sensitivity (ECS), and x_j representing transient climate response (TCR). The ensemble originates from constraining the uncertain parameters by observations and deriving equally probable samples within a confidence interval equivalent to the IPCC's (AR4) 'very likely' (>90%) interval. The relative uncertainty in the social costs of carbon represented by the ensemble is defined by:

$$\begin{eqnarray} &&\bigtriangleup Y=\frac{\mathop{\max }\limits _{X}Y-\mathop{\min }\limits _{X}Y}{\frac{1}{2}[\mathop{\max }\limits _{X}Y+\mathop{\min }\limits _{X}Y]}. \end{eqnarray} \tag{ A.1 }$$

We say that x_i 'is a better proxy' for Y than x_j, if gaining perfect knowledge about x_i constrains the uncertainty in Y further than gaining perfect knowledge about x_j. More formally, we define the expected relative uncertainty of Y after perfect learning about x_i via:

$$\begin{eqnarray} \overline{{\bigtriangleup Y\vert }_{{x}_{i}}}&=&\sum _{i=1}^{m}p({x}_{i}){\bigtriangleup Y\vert }_{{x}_{i}}\nonumber\\ &=&\sum _{i=1}^{m}p({x}_{i})\frac{\mathop{\max }\limits _{{X\vert }_{{x}_{i}}}Y-\mathop{\min }\limits _{{X\vert }_{{x}_{i}}}Y}{\frac{1}{2}[\mathop{\max }\limits _{{X\vert }_{{x}_{i}}}Y+\mathop{\min }\limits _{{X\vert }_{{x}_{i}}}Y]}, \end{eqnarray} \tag{ A.2 }$$

and the expected percentage reduction in relative uncertainty about Y through perfect learning about x_i via:

$$\begin{eqnarray} &&{R}_{{x}_{i}}(Y)=1 0 0\times \frac{\bigtriangleup Y-\overline{{\bigtriangleup Y\vert }_{{x}_{i}}}}{\bigtriangleup Y}. \end{eqnarray} \tag{ A.3 }$$

Hence, we take the difference of the expected percentage reduction in relative uncertainty about Y through perfect learning about x_i rather than about x_j as an indicator for being a better proxy for Y:

$$\begin{eqnarray} &&{{I}_{i,j}=R}_{{x}_{i}}(Y)-{R}_{{x}_{j}}(Y), \end{eqnarray} \tag{ A.4 }$$

which is shown in figure 3.

The social cost of carbon (SCC) is a marginal concept for calculating the monetized impact of the 'next' ton of emissions (or rather a pulse of emissions, but small relative to the emission baseline). The result of TCR being a better proxy for SCC than ECS, over a wide range of effective discount rates and damage functions might depend on the baseline emission scenario. Another effect impacting upon the comparison of TCR versus ECS might come from the cut-off introduced in the ensemble design process, where only samples are kept that lie within a given confidence interval of an underlying Gaussian distribution, where the default value of taking the 5–95th percentile represents the IPCC category of taking the 'very likely' boundaries of the ensemble.

Finally, the limits of the marginal approximation were tested by investigating the impact of bigger, potentially non-marginal, emission pulses, as a small pulse size 'linearizes' any damage function.

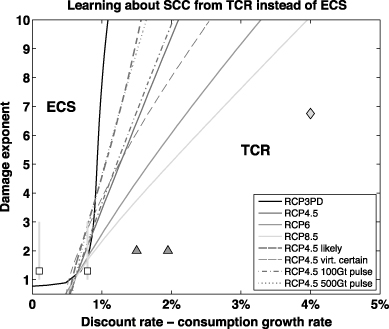

Hence the investigation of the expected reduction in relative uncertainty of SCC by perfect learning about TCR, or ECS was repeated for four different baseline emission scenarios, which represent the CO₂-only emissions from the RCP scenarios [26], for three different amplitudes of the additional emission pulse (10 GtC, 100 GtC, 500 GtC), and for different confidence intervals of an underlying Gaussian distribution representing the IPCC's categories of 'likely' (>66%), 'very likely' (>90%), and 'virtually certain' (>99%), whereby we always started from RCP4.5 as a base case and changed one property at a time. The resulting boundary between the regimes in the space, spanned by effective discount rate and damage function exponent, in which TCR or ECS are 'better proxies' for the social cost of carbon are shown in figure B.1.

Zoom In Zoom Out Reset image size

While TCR remains the better proxy for SCC for the majority of combinations of published damage exponents and observed social time preference rates, we note a general tendency of ECS being the 'dominant' proxy for a larger range of discount rates and damage functions the higher the baseline emission scenario. Higher emissions scenarios make ECS more relevant for rapidly rising damage functions because those damage functions are extremely sensitive to small changes in larger numbers. Likewise, increasing the fraction of the distribution covered in the analysis makes ECS more relevant, again at higher damage functions, for the same reason: because the combination of higher numbers raised to powers greater than four somewhat offsets more of the effect of the discounting. However this effect is pronounced only for rather high damage exponents, within the range of exponents broadly used (<3) TRC remains a better proxy for SCC, given that the effective discount rate is >1%. Changing the ensemble design by demanding a higher level of confidence (i.e. including more ensemble members) induces the same tendency of extending the regime in which ECS is a better proxy towards higher effective discount rates. Again, this tendency is only significant for high damage function exponents.

Testing the limits of the marginal approximation shows that higher amplitudes of the emission pulse added to the baseline have the opposite effect to a higher level of confidence and a higher emission baseline, by shifting the boundary between the TCR and ECS regimes towards lower effective discount rates.

Our main conclusion is that TCR is a better proxy for SCC than ECS for a wide range of effective discount rates (>1%) and damage function exponents, including many settings used in prominent integrated assessment studies. This result is robust under changes to the emission baseline, ensemble design, and the amplitude of the emission pulse, up to about quadric damage functions. Damage of this order or higher is rare in the integrated assessment literature.
