Cavity-enhanced storage—preparing for high-efficiency quantum memories

Coherent and reversible mapping of a quantum state between light and matter, as a flying and stationary qubit, is an essential step toward scalability of quantum information processing [1, 2]. Such an optical quantum memory would be important for storing and synchronizing the output quantum states of several quantum gates in quantum computation protocols [3]. In addition, quantum memories may also play a crucial role in enabling long-distance (>150 km) quantum communication [4] and in other applications [5]. Most ensemble-based optical quantum memory protocols [5, 6] belong to one of two main groups: one where the protocols are based on electromagnetically induced transparency [7–9] and one where they are based on the coherent rephasing (echo) effect [10] such as controlled reversible inhomogeneous broadening [11, 12], atomic frequency comb (AFC) [13–18], gradient echo memory [19–21] and revival of silenced echo [22].

There are specific criteria for assessing quantum memory performance based on the application in mind, but generally we could list the following key parameters: efficiency, fidelity, storage time, multi-mode storage capacity and operational wavelength [5]. The scope of this paper is mainly to demonstrate how to improve the memory efficiency of weakly absorbing materials. The memory efficiency is here defined as the energy of the pulse recalled from the memory divided by the energy of the pulse sent in for storage in the memory. At the quantum level (weak coherent pulses), storage efficiency basically corresponds to the probability that the stored information is retrieved. Fidelity is simply defined as the overlap of the quantum state wavefunction of the recalled photon with that of the one originally sent in for storage. In the optimum fidelity case, the wave-functions for the input and output photons are identical. An alternative definition is conditional fidelity, i.e. the overlap conditional on that the photon was emitted by the memory [5]. Based on the application, there will also be requirements on longer storage time [7, 23–25] and on-demand retrieval. The capacity to store several photons (modes) at the same time in the memory is called multi-mode storage capability. Multi-mode storage is crucial in probabilistic applications to boost the occurrence rate of events [16, 26, 27] and the AFC concept has been shown to be particularly suitable for multi-mode applications [28].

In the AFC protocol, which is employed in this paper, the combination of photon-echo and spin-wave storage allows on-demand storage. However, the present experiment does not include spin storage. The principle of the AFC protocol preparation is shown in figure 1. A sequence of narrow peaks, equidistant in frequency, with a peak optical absorption depth d and background absorption d₀ is created by optical pumping and/or targeted state-to-state transfer pulses. The input field for storage, with a spectral distribution larger than the peak separation Δ in figure 1 and narrower than the AFC bandwidth, could be totally absorbed by a sequence of narrow peaks. Afterwards, the input field will excite all the atoms in the AFC structure coherently. The collective coherent state distributed over AFC peaks separated by Δ will rapidly dephase into a non-collective state. Well-separated equidistance AFC peaks will rephase and lead to a collective emission after a time 1/Δ.

Zoom In Zoom Out Reset image size

For high-efficiency quantum state storage, one basic requirement is to have enough absorption depth to fully transfer all the input pulse energy to the atomic media. However, in strongly absorbing media one also needs to eliminate the reabsorption of the emitted echo in the medium. This can be done by shifting the absorber using the linear Stark effect with an electric field gradient where the output field will be emitted in the backward [11] or forward [20] direction. On the other hand, the strong absorption requirement will clearly pose some limitations on the material used. Thus, it would be very important to enhance the absorption of materials with long coherence time but low absorption (e.g. europium).

Interestingly, complete absorption of the input pulse can also be obtained for weakly absorbing materials (that, for example, could have longer coherence time, such as Eu³⁺:Y₂SiO5 [31]) if they are inserted in a cavity [32, 33]. This cavity should satisfy the impedance-matched condition for achieving complete absorption of the input pulse. To do this, the absorption during one round trip of the cavity should be exactly equal to the transmission of the input coupling mirror and also there should be no other losses during the cavity round trip. Obtaining this (impedance-matched) condition is a vital step toward efficient quantum memories using weakly absorbing media. In this work, we employed a cavity configuration around our absorber material and demonstrate more than one order of magnitude improvement in memory efficiency compared to that obtained without the cavity. The praseodymium absorption line in Pr³⁺:Y₂SiO₅ was tailored based on the AFC protocol [13] and an impedance-matched cavity configuration [32] is employed to mainly enhance the quantum memory efficiency. On-demand recall as well as longer quantum memory storage time could be achievable via spin-wave storage [14, 23] but this is beyond the scope of the present paper. Cavity-enhanced spin wave-to-photon conversion efficiency results have, for example, been demonstrated in atomic gases [34, 35].

The paper is organized in the following way. In section 2, we give an overview of the experimental setup, in particular as regards the cavity design. In section 3, the effect of having an absorbing quantum memory material inside the cavity is discussed. In section 4, we show quantum memory efficiency results following the preparation steps toward the AFC memory demonstration, and in section 5, a further discussion about the strong dispersion and cavity free spectral range effect is included. The conclusions are presented in section 6.

This section discusses the experimental setup and is divided into two main parts. The first part describes the stabilized laser source and the modulator setup which generates the pulses, while the second part outlines the cavity crystal design as shown in figure 2(a). A 6 W Nd:YVO₄ Coherent Verdi-V6 laser at 532 nm pumps a Coherent 699-21 dye laser, which generates ∼500 mW laser radiation at 605.977 nm. This wavelength matches the ³H₄–¹D₂ transition of praseodymium ions doped into yttrium silicate (Pr³⁺:Y₂SiO₅) [29, 30].

Zoom In Zoom Out Reset image size

The laser stabilization system, which uses hole-burning in a Pr³⁺:Y₂SiO₅ crystal in a separate cryostat as the frequency reference, improves the frequency stability of the laser to ≈1 kHz line width [36]. Good frequency stability is crucial for coherent interaction experiments such as the ones described here. The ³H₄–¹D₂ transition in Pr³⁺:Y₂SiO₅ has an excited state coherence time (T₂) of 152 μs [29]. A double pass acousto-optic modulator (AA opto-electronics St.200/B100/A0.5-VIS, AOM) with 200 MHz center frequency is employed to tailor the laser light amplitude, phase and frequency and to carry out the required pulse shaping in the experiment. An extensive MATLAB code calculates the pulse shapes and a 1 GS s⁻¹ arbitrary waveform generator (Tektronix AWG520) generates the RF signal that drives the AOM that modulates the light. The spatial laser mode is cleaned by passing light through a single-mode fiber and then a 50/50 beam splitter is used to obtain the reference signal at the photo diode (PD1) before the cavity crystal. The transmitted light through the cavity will be detected at PD2 in figure 2. The reflected light from the cavity will be detected by the third photo diode (PD3) in figure 2. The PD1 and PD3 are PDB150A photo detectors from Thorlabs, while PD2 is a Hamamatsu S5973 photo diode which is connected directly to a Femto DHP CA-100 transimpedance amplifier. The beam diameter at the cavity crystal position is set to about 80 μm. The crystal was immersed in liquid helium at 2.1 K to ensure that the optical coherence time (T₂) of the praseodymium is not shortened by phonon interaction. A λ/2 plate was used in front of the crystal to control the light polarization direction with respect to the crystal axes and the Pr transition dipole moment direction [37].

The cavity crystal is made of 0.05% praseodymium ions doped into yttrium silicate (Pr³⁺:Y₂SiO₅). It has 12 mm diameter and is (except for the small wedge) cut along the D₁ × D₂ plane with a thickness of 2 mm as shown in figure 2(a). The cavity mirrors are created by coating the 12 mm diameter crystal surfaces. Multiple layer stacks of SiO₂ and ZrO₂ are designed and applied for these coating surfaces by Optida. The light propagation direction is selected to be along the crystal b-axis as shown in figure 2. The input and output cavity facets are designed to have reflectivities of R₁ = 80% and R₂ = 99.7%, respectively. The losses because of the Pr ion absorption through the double pass of the cavity should be adjusted to compensate for the unequal cavity surface coating to achieve the impedance-matched cavity condition [32, 33]. The impedance-matched cavity condition occurs when the directly reflected field and a transmitted field coming from the field circulating inside the cavity cancel each other at the input surface and consequently the reflected intensity vanishes.

The calculated cold cavity (i.e. neglecting any Pr absorption effects) transmission frequency spacing ($\frac {c}{2nL}$) for this crystal with n = 1.8 and L = 2 mm is 41.6 GHz. The theoretical finesse of this cavity based on the mentioned mirror reflectivities is ≈25 which corresponds to a spectral line width of 1.5 GHz. Scanning the laser light across the cold cavity (off-resonance with the Pr ion absorption line) shows a cavity transmission line width of about 2.5 GHz, which corresponds to a finesse of about ≈16. Part of the reduction could be related to the wedge design, causing a small beam walk-off as the light bounces between the mirrors.

To spectrally match the cavity transmission profile to the inhomogeneous absorption line of Pr [29], the crystal was designed to have a small wedge as shown in figure 2(a), such that the length L differs by about 200 nm. In this way the cavity transmission spectrum could be translated well over one free spectral range. To accurately match the cavity transmission peak to the Pr absorption line, a translation stage with sub-μm accuracy (Attocube system, ANCz150) is employed to translate the crystal perpendicular to the input beam.

The parallelism of the cavity surfaces is determined by an interference experiment. A collimated coherent beam (λ = 606 nm) with diameter >12 mm impinged almost perpendicularly on the crystal surface and the reflected pattern was monitored. Figure 3 shows the non-uniform interference pattern before coating the cavity surface. One could estimate the cavity parallelism in figure 3, as the change in the cavity length is λ_material/2 between two bright or dark fringes in the cavity. Since figure 3 shows the light reflected from the cavity, the dark fringes are the areas of larger transmission.

Zoom In Zoom Out Reset image size

For quantum state storage, the AFC protocol [13] is chosen for engineering the absorption profile of the inhomogeneously broadened Pr ion. The heart of the AFC protocol is using a spectrally periodic medium for enhancing the storage capacity. Using a frequency domain interpretation, the periodic structure shown in figure 1(b) can be viewed as a spectral grating. The storage pulse tuned to the AFC structure is diffracted in time and produces an echo [38]. Based on a time domain interpretation, this will be interpreted as a rephasing of a set of dipoles in time [13]. The storage pulse will be absorbed by AFC peaks well separated in frequency (Δ in figure 1(b)). The collective emission of AFC peaks will be in phase after time 1/Δ generating an echo of the input pulse.

The first step toward this preparation is to make a zero absorption window within the inhomogeneous Pr ion absorption profile. A series of optical pumping pulses is employed to create an 18 MHz transmission window (spectral pit) within the ≈9 GHz inhomogeneous profile of Pr³⁺:Y₂SiO₅. A detailed discussion about what pulses can be used to create the transmission window is presented in [17]. This transmission window is called the spectral pit in [30], which we will use afterwards.

It turns out that a spectral transmission window (spectral pit) might change the cavity mode spacing by several orders of magnitude due to slow light effects. This will now be briefly explained by considering a dispersive medium inside a cavity as follows (see equation (11.58), p 437 of [39]):

$$\begin{equation} \Delta\nu_{\mathrm{ mode}}=\nu_{q+1}-\nu_q=\frac{1}{2L} \frac{c_0}{n_{\mathrm{g}}(\nu)}=\frac{v_{\mathrm{g}}}{2L}, \end{equation} \tag{ 1 }$$

$$\begin{equation} n_{\mathrm{g}}(\nu)=\frac{c_0}{v_{\mathrm{g}}}=\frac{\partial(\nu n_{\mathrm{r}}(\nu))}{\partial\nu}=n_{\mathrm{r}}(\nu)+\nu\frac{\mathrm{d} n_{\mathrm{r}}(\nu)}{\mathrm{d}\nu}, \end{equation} \tag{ 2 }$$

where q is an integer, L is the cavity length, c₀ is the speed of light in vacuum, n_g(ν) is the refractive index for the group velocity, n_r(ν) is the real part of the refractive index for the phase velocity and ν_g is the group velocity. It is important to note that the index of refraction in equation (1) is not the index of refraction for the phase velocity, n, but the index of refraction of the group velocity, n_g. This is sometimes overlooked, but in a low dispersion medium the two indices of refraction are the same (n ≈ n_g), so often the dispersion is not important. The real and imaginary parts of the susceptibility are connected via the Kramers–Kronig relation as follows:

$$\begin{equation} \mathrm{Re}\,(\chi(\nu))=\frac{2}{\pi}\int_0^\infty \frac{\nu'{\rm Im}(\chi(\nu'))}{\nu'^2-\nu^2}\,{\mathrm{ d}}\nu', \end{equation} \tag{ 3 }$$

$$\begin{equation} \mathrm{Im}\,(\chi(\nu))=\frac{2}{\pi}\int_0^\infty \frac{\nu'\mathrm{Re}(\chi(\nu'))}{\nu'^2-\nu^2}\,{\rm d}\nu'. \end{equation} \tag{ 4 }$$

Therefore, by measuring the absorption spectrum α(ν) which is directly related to Im (χ(ν)) and using this as an input to equation (3), one can calculate Re (χ(ν)) which is proportional to n_r(ν) and then calculate the dispersion ($\frac{\mathrm{d}n_{\mathrm{r}}(\nu)}{\mathrm {d}\nu}$). In the cold cavity case where there is no absorption and consequently also no dispersion, the $n_{\mathrm {r}}(\nu)\gg \nu \frac {\mathrm {d}n_{\mathrm {r}}(\nu)}{\mathrm {d}\nu }$ regime holds, while in the case of a spectral pit we have $n_{\mathrm {r}}(\nu)\ll \nu \frac {\mathrm {d}n_{\mathrm {r}}(\nu)}{\mathrm {d}\nu }$. Actually, using the experimentally recorded absorption α(ν) as the input to equation (3) gives a dispersion term ($\nu \frac {\mathrm {d} n_{\mathrm {r}}(\nu)}{\mathrm {d}\nu }$) in equation (2) which is three to four orders of magnitude larger than n_r(ν). This means that the mode spacing for frequencies inside the spectral transmission window now is only of the order of 10 MHz.

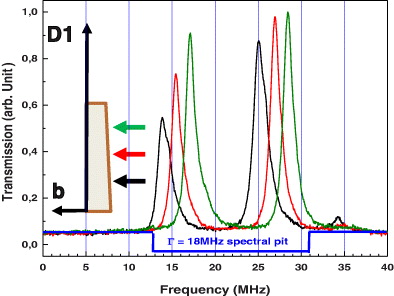

To experimentally monitor the created transmission window, a weak minimally disturbing pulse was frequency chirped at a rate of 1 MHz μs across the corresponding frequency region. In the absence of a cavity this procedure typically displays an ≈18 MHz spectral pit (see, e.g., figure 1 in [40]²). For the cavity case, only a much narrower transmission line (≈2 MHz) inside the spectral region was observed. This sharp transmission line turns out to be about three orders of magnitude narrower than the cold cavity transmission peaks. The cavity finesse (F_cav) is primarily determined by the mirror reflectivity. Therefore, F_cav should be independent of the spectral pit (transmission window) properties provided that the possible residual absorption in the spectral pit is small. Based on the assumption of a constant cavity finesse, the ratio between the cavity free spectral range (Δν) and δ will be constant. Thereby, it follows from equation (1) that the cavity transmission line width is proportional to the group velocity (v_g). Thus, the 2 MHz transmission peak is largely consistent with the obtained results based on the theoretical calculation above. Two cavity transmission peaks that are translated by changing the cavity length are shown in figure 4. The cavity transmission peaks were translated by moving the slightly wedged crystal perpendicular to the beam propagation direction. The reduction of the cavity transmission line width is also due to the strong dispersion that is created by the spectral pit inside the cavity.

Zoom In Zoom Out Reset image size

In fact, although there are experimental observations of changes in the cavity mode spacing in active media of more than an order of magnitude [41, 42], we are not aware of any effects as large as the three to four orders of magnitude observed here. Details of this effect are, however, beyond the scope of the present paper and will be addressed in a separate publication [43].

Each AFC peak shown in figure 1(b) is prepared within the created transmission window (spectral pit) by employing two consecutive complex hyperbolic secant [30] pulses to optically pump Pr ions from $\vert \pm \frac{5}{2}g\rangle \rightarrow \vert \pm \frac{5}{2}e\rangle$ and $\vert \pm \frac{5}{2}e\rangle \rightarrow \vert \pm \frac{1}{2}g\rangle$ (see figure 1(a)). This procedure is carried out four times, each time with a new center frequency shifted by Δ to create an AFC structure as shown in figure 1(b). In this way the AFC structure is engraved in the $\vert \pm \frac{1}{2}g\rangle$ state. To be able to use the cavity configuration and improve the storage efficiency, the AFC structure needs to be engraved within the cavity transmission window. Therefore, the cavity transmission line width (δ) needs to be optimized to cover the whole AFC structure bandwidth. As discussed in [40] the group velocity can be written as $v_{\mathrm {g}}=\frac {2\pi \Gamma }{\alpha }$, where Γ and α are the spectral pit width and the absorption coefficient outside the spectral pit, respectively. It was, therefore, concluded that in 0.05% Pr:YSO, where the maximum spectral pit window width (Γ) is limited to 18 MHz and at the line center absorption coefficient (α) is about 2000 m⁻¹, the only possibility for the cavity transmission line of width δ to cover the AFC bandwidth was to obtain a smaller α by moving the whole spectral pit to a part of the inhomogeneous profile where the absorption was lower than at the inhomogeneous line center. The created spectral pit and the AFC peaks will affect the dispersion and finally the cavity mode structure (see equation (1)). Therefore, the shape of the spectrum is a combination of the effect from the AFC absorption pattern and the cavity dispersion effect.

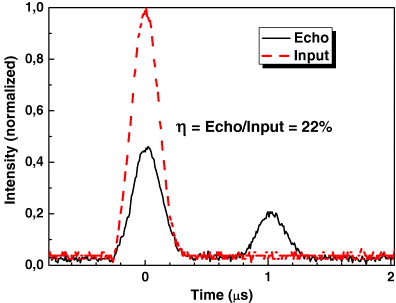

The next step after the AFC preparation is to send the storage pulse tuned to the AFC structure center frequency through mirror R₁ (see figure 2). For this purpose, a Gaussian pulse with τ_FWHM = 250 ns was employed. For an AFC structure with peak separation Δ, there will be a rephasing after a delay 1/Δ [13]. The black solid trace in figure 5 is the signal when the storage pulse is tuned to the AFC structure center frequency and impinged onto mirror R₁. We define the memory efficiency as the ratio of the output (echo) energy divided by the input pulse energy. To obtain a reference signal, for the input energy to the memory, the cavity was turned ∼180° such that the input Gaussian storage pulse impinged on the mirror with reflectivity R₂ (nearly 100% reflection) and the reflection was detected at the reflection detector (PD3). This signal represents the input signal shown by the (red) dashed line in figure 5 and corresponds to the signal strength that would be observed if the memory efficiency were 100%. The reference detector PD1 was employed to compensate for the measurements for laser fluctuation from one measurement to another. 22% of the input energy was retrieved in the echo after 1 μs as shown in figure 5.

Zoom In Zoom Out Reset image size

Finally, an interesting observation is that the requirement of matching the absorption with the mirror reflectance, in combination with the slow light effect when creating the spectral pit and the AFC structure, may put restrictions on the system performance as shown by the following calculation. According to equation (1) the mode spacing of a cavity with length L is given by $\Delta \nu =\frac {v_{\mathrm {g}}}{2L}$ and from $v_{\mathrm {g}}=\frac {2\pi \Gamma L}{d_{\rm{pit}}}$ [40, 44] the cavity line width, δ, could be written as

$$\begin{equation} \delta =\frac{\Delta \nu}{F_{\rm cav}}=\frac{\pi \Gamma}{F_{\rm cav}d_{\rm pit}}, \end{equation} \tag{ 5 }$$

where F_cav is the cavity finesse. Therefore, as a general statement, the ratio $\frac {\delta }{\Gamma }=\frac {\pi }{F_{\rm{cav}}d_{\rm{pit}}}$. To explore the cavity condition on the AFC preparation, one could write the cavity finesse

$$\begin{equation} F_{\mathrm{ cav}}=\frac{\pi R^{1/4}}{1-\sqrt{R}}, \end{equation} \tag{ 6 }$$

where the mirror reflectance (R) should satisfy the impedance matching condition ($R=\exp (-2\tilde {d})$) and $\skew3\tilde{d}=\frac {d}{F_{\rm{AFC}}}$. $\skew3\tilde {d}$ is the effective absorption (d₀ = 0) according to figure 1. Considering $2\skew3\tilde{d}\ll 1$, we could simplify equation (6) as

$$\begin{equation} F_{\mathrm{ cav}}\approx\frac{\pi}{\skew3\tilde{d}}. \end{equation} \tag{ 7 }$$

Now we can rewrite the cavity line width as

$$\begin{equation} \delta=\Gamma\frac{\skew3\tilde{d}}{d_{\rm{pit}}}=\frac{\Gamma}{F_{\rm{AFC}}}. \end{equation} \tag{ 8 }$$

Therefore, the cavity line width for a matched cavity to first order just depends on the spectral pit width and the finesse of the AFC structure. This may cause complications because, to minimize the memory loss due to dephasing, F_AFC should be as high as possible and Γ is limited by the hyperfine splitting in the material and cannot easily be varied freely.

This can affect the fitting of the AFC structure under the cavity line width since the cavity line width might not be wide enough. But, practically, we do not expect this limitation to become important until one gets into the high-efficiency (η > 90%) regime where it is important to suppress memory loss due to the dephasing factor ($\exp (\frac {-7}{F_{\rm{AFC}}^2})$ in equation (9)) by choosing higher AFC finesse (F_AFC > 9). Even in this case, the cavity line width will readily still be close to the excited state hyperfine transition separation, which is the bandwidth limitation of the AFC protocol as discussed in [13]. On the other hand, the AFC peaks themselves are very narrow absorption structures and consequently will create strong dispersion effects. The effects will modify the transmission structure and this may offer further possibilities; however, as previously stated, a detailed analysis is beyond the scope of this paper.

To estimate the enhancement in storage efficiency attained by employing the cavity configuration, we calculate what signal would have been expected if the end faces were un-coated. The AFC storage efficiency, η, is given by [45]

$$\begin{equation} \eta=\skew3\tilde{d}^2 \exp(-\skew3\tilde{d})\exp\left(\frac{-7}{F_{\rm{AFC}}^2}\right)\exp(-d_0), \end{equation} \tag{ 9 }$$

where $\skew3\tilde{d}=\frac {d-d_0}{F_{\rm{AFC}}}$ is the effective absorption, d₀ is the background absorption and $F_{\rm{AFC}}=\frac {\Delta }{\gamma }$ as shown in figure 1(b). This equation has been shown to agree very well with experiment in [15, 17]. According to equation (5), we can estimate the ratio between the absorption depth of the pit at the spectral position where the quantum memory was prepared, d^QM_pit, and the absorption depth of the pit at the line center, d^c_pit (see figure 1(b)) as follows:

$$\begin{equation} \frac {d^{\mathrm {QM}}_{\rm{pit}}}{d^{\mathrm {c}}_{\rm{pit}}}=\frac {\delta _{\mathrm {c}}}{\delta _{\mathrm {QM}}}, \end{equation} \tag{ 10 }$$

where δ_QM and δ_c are the cavity line width at the quantum memory preparation spectral position and the line center, respectively (with the assumption that Γ and F_cav are similar in these two cases). For the present setup, it turns out that we have δ_c = 1.5 MHz, δ_QM = 8 MHz and d^c_pit = 4, which gives d^QM_pit = 0.75. To our knowledge d < d^QM_pit in all the papers published so far; thus we might chose the actual optical depth of the AFC structure d = 0.75. From equation (9), considering negligible background absorption d₀, and F_AFC = 7 (which is our best guess for the present work) we get an efficiency of <1%. Thus the estimate is that we have at least observed a 20-fold enhancement using the cavity.

The main experimental limitations in the present setup for achieving unity storage and retrieval efficiency, which is predicted theoretically [32, 33], are the following. Firstly, as shown by the black solid trace in figure 5, about 50% of the input pulse is reflected directly at time t = 0. Therefore, to improve the storage efficiency one needs to increase the input pulse absorption. Limited absorption means, then, that the impedance-matched condition is not fulfilled. This is partly related to poor spatial mode matching. However, it is also possible that the impedance-matching condition in our cavity crystal could be improved by locking the laser further from the Pr line center (>5 GHz) where the absorption is lower. This could, however, not be fully tested in the present setup since it is difficult to select the laser frequency stabilization point far from the line center for the stabilization setup based on a spectral hole [36]. Secondly, after optimizing the absorption, improving the retrieval part of the memory may be possible by improving the finesse of the prepared AFC structure (F_AFC).

In conclusion, we demonstrate a ∼20-fold enhancement in quantum memory efficiency for cavity-assisted quantum memories compared to the no cavity case. This is a proof of principle for achieving high quantum memory efficiency using weakly absorbing media. In addition, we demonstrate a ∼3 order decrease in cavity mode spacing using slow light effects in a dispersive medium. We are not aware of any previous observations of cavity mode spacing changes of this order of magnitude due to slow light effects.

This work was supported by the Swedish Research Council, the Knut and Alice Wallenberg Foundation, the Crafoord Foundation and EC FP7 contract no. 247743 (QuRep). We are grateful to Dr Mikael Afzelius for several valuable discussions.
