Small scale rotational disorder observed in epitaxial graphene on SiC(0001)

Interest in the single layer of hexagonally coordinated carbon atoms, known as graphene, has been intense ever since the discovery of its unusual electronic properties [1]. An understanding of the electronic properties is essential if graphene applications are to be realized. Angle resolved photoemission spectroscopy (ARPES) measurements provide the most direct method to investigate the electronic band structure. This technique requires large well defined samples, which can only be realized by producing graphene on a crystal substrate. ARPES has been performed on graphene on metal substrates, however electronic applications will require insulating or semiconducting substrates. A significant number of ARPES studies have therefore been performed on graphene grown epitaxially on silicon carbide (SiC) by thermal decomposition [2, 3]. This preparation method is a very promising candidate for applications because the production process can be scaled up, uses common semiconductor processing steps, and provides large scale uniform layers.

This material can be considered an important testbed for exciting solid state physics and interest has turned to the fine details of its band structure, as observed by ARPES. In this context we compare ARPES measurements to a semi-empirical photoemission model. Comparison of the model to experimental data accounted for almost all features of the electronic structure, with the exception of an anisotropy in the spectral width when sampling the band structure along different directions in reciprocal space. We show that this anisotropy is explained by a ± 0.15° rotational disorder of the graphene domains. Figure 1(a) shows an example of the well known experimental spectral function obtained from epitaxial graphene on SiC(0001). This shows that the graphene is n-doped, i.e. the Dirac energy (E_D), or linear band crossing point, is shifted to ∼ − 0.5 eV. For graphene grown in this method it has been demonstrated to be separated from the substrate by the so-called buffer layer with $(6\sqrt {3} \times 6\sqrt {3}) R 30^{\circ }$ periodicity (hence forth $6\sqrt {3}$) [4]. The anisotropy in the Fermi surface intensity (decrease in intensity in one direction) [5], the increase in the intensity between the Fermi surface (0 eV constant energy slice) and ∼200 meV [6] and the offset of the bands above and below the Dirac crossing, E_D, [7–9] have all been successfully described. Until now the anisotropy in the spectral width of the Fermi surface has not been explained. This anisotropy is seen in figure 1(a)(i) as an increased width in the vertical, k_y (${\overline {KK}}$), direction when compared to that in the horizontal, k_x ( ${\overline {\Gamma K}}$), direction. This variation is not confined to the Fermi surface, but appears across all energies.

Zoom In Zoom Out Reset image size

This line width variation is important for a detailed analysis of the spectral function in many contexts such as gap formation, the examination of many-body interactions and the investigation of the Berry's phase in graphene. The current work provides a simple explanation of this feature, in terms of small scale rotational disorder, which is essential to the discussion of the electronic structure of graphene. In fact many papers have used intensity and line-width variations in ARPES data to discuss the existence of various quasiparticles [9–15] and in discussions of the Berry's phase [11, 16, 17] in graphene. The current work therefore provides an invaluable insight into ARPES spectral variations and in the understanding of these more exotic features.

ARPES were obtained at the Maestro end station (SES-R4000 analyzer) at beamline 7 of the Advanced Light Source, Lawrence Berkeley National Laboratory. Spectra were taken at ∼20 K, at <2 × 10⁻¹⁰ Torr using 95 eV photons giving an overall resolution of ∼25 meV and 0.01 Å⁻¹. Epitaxial graphene on SiC(0001) was prepared either by annealing in ultra-high vacuum  [2] (vacuum grown) or by annealing in Ar [3] (argon grown) using a custom built reactor [18]. The decomposition of SiC in Ar leads to an improved crystalline quality [3].

In order to generate a semi-empirical model of the experimental ARPES data (spectral function) the simplest approach is to start with an unbroadened E(k) dispersion relation, a so-called bare band. The bare band used in the semi-empirical ARPES model is a first nearest neighbor tight binding model fit to experimental graphene on $6\sqrt {3}$ data. This models the π bands via the relations

$$\begin{equation} {E_{\rm bare}({\bf k}) = \frac{\epsilon_{2p}\pm \gamma_0\omega(\bf k\rm)}{(1 \pm s_0\omega(\bf k \rm)}}, \end{equation} \tag{ 1 }$$

$$\begin{equation} {\omega({\bf k}) = \sqrt{1+4\cos\left(\frac{\sqrt{3}ak_y}{2}\right)\cos\left(\frac{ak_x}{2}\right) + 4\cos^2\left(\frac{ak_x}{2}\right)}} \end{equation} \tag{ 2 }$$

with a lattice constant, a = 2.46 Å. The fitted parameters, γ₀ = −3.24 eV and s₀ = 0.0425 eV, are those found by Bostwick et al [17]. The final fitted parameter, _2p, is the offset of the Dirac energy, E_D, from the Fermi level due to doping of the graphene by the substrate and is determined by comparison to the ARPES measurements. This approach has been shown previously [17] to accurately model the bare band dispersion within the region considered in the present paper (within 1 eV of the Fermi level). Broadening of the bare band is then introduced to the model through the self energy via the spectral function relation [19]

$$\begin{equation} { {\bf A} (E, {\bf k}) = \frac{|{\rm Im} \Sigma(E, {\bf k})|}{(E - E_{\rm bare}({\bf k}) - {\rm Re}\Sigma(E, {\bf k}))^2 + {\rm Im}\Sigma(E, \bf k \rm)^2}}. \end{equation}\noindent \tag{ 3 }$$

The self energy is determined using the semi-empirical method of Bostwick et al [20], where the linewidth of the ARPES momentum density curves (MDCs) are used to determine the imaginary component of the self energy, which is Hilbert transformed to get the real component. This experimental self energy is then used to recreate the experimental data and a self-consistent fitting used to further refine the self energy. An additional Gaussian broadening term is added to the current model to account for experimental broadening, dE = 25 meV.

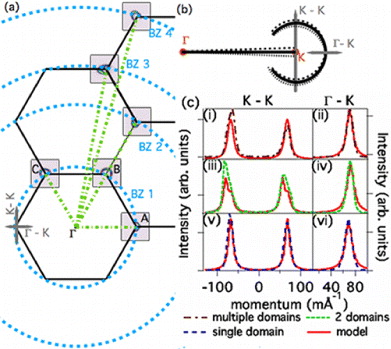

Rotational disorder of graphene on metal substrates such as Cu(111) [21] and Pt(111) [22] has been shown to lead to significant anisotropic spectral broadening. Therefore we attempted to model the much smaller anisotropic broadening seen in graphene on SiC with a similar small rotational disorder. To model the effect of rotational disorder several three-dimensional spectral functions, rotated around the Γ point by small angles, are summed together. This is illustrated, for a two-dimensional Fermi surface (0 eV slice through momentum space), in figure 2(b). The non-rotated Fermi surface is the solid arc around the K point, two further Fermi surfaces (dashed arcs) are shown rotated by a small amount around Γ. The effect on the Fermi surface is that it appears broader in the ${\overline {KK}}$ direction than in the ${\overline {\Gamma K}}$ direction. Examples of the Fermi surface intensity profiles in the ${\overline {KK}}$ and ${\overline {\Gamma K}}$ directions for three different regions on a sample are shown in figure 2(c). Fitted Fermi surface data presented in figures 3 and 4 are obtained by taking similar intensity line profiles of the Fermi surface in 1° steps around the K point with the ${\overline {\Gamma K}}$ direction being set as the zero angle. The Lorentzian width is set to the width of the Fermi surface in the ${\overline {\Gamma K}}$ direction (0.15 Å⁻¹), ensuring the Gaussian line width describes the variation in width of the Fermi surface.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

In order to investigate the anisotropy in the width of the Fermi surface, experimental spectral functions at a number of K points in the graphene Brillouin zone (an example spectral function is shown in figure 2(a)) were obtained. The K points are all equivalent with respect to the proposed rotational disorder. This is not the case for the higher order Brillouin zones (BZ2, BZ3 and BZ4 in figure 2) where the axis of rotation no longer lies in the ${\overline {\Gamma K}}$ direction. Investigation of the higher Brillouin zone experimental spectral functions provides an important test of the rotational disorder model, as discussed in more detail below. Fitted Fermi surface data were then extracted from these spectral functions and are presented in figures 3 and 4. Spectral functions obtained using the semi-empirical model described in the methods section were also analyzed in a similar manner and are overlayed on the data in figures 3 and 4.

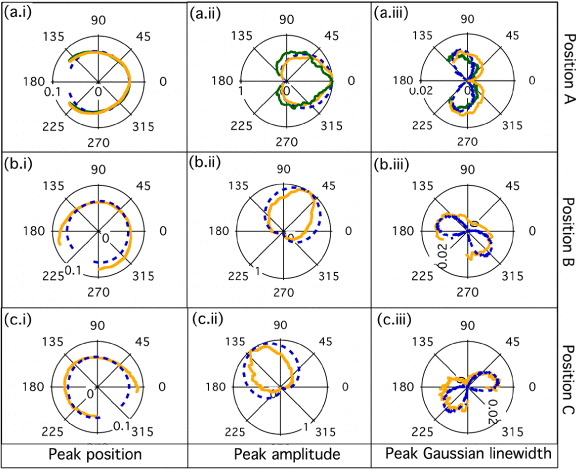

The experimental data obtained from the first Brillouin zone (position A–C from figure 2) is presented in figure 3. This data is compared to a semi-empirical model which involves 15 rotational domains equally spaced between ±0.15°. The size (peak position) and intensity (peak amplitude) of the Fermi surface is well described by the model. The anisotropy in the width of the Fermi surface (variation in the peak Gaussian linewidth) is clearly evident by the 'peanut' shape in figures 3(a)(iii), (b)(iii) and (c)(iii) for both vacuum grown and argon grown samples. The 'peanut' shape is only produced by the semi-empirical model by considering rotational disorder. The size of the 'peanut' lobes is directly proportional to the rotational variation of the domains, with ±0.15° providing the best agreement. The number of domains included was also investigated, using more than five made no difference to the linewidth variation, while less than three and the Fermi surfaces from each domain where clearly separated. A minimum of ten domains were required to adequately describe the lineshapes observed in figure 2(c), the value of 15 was therefore chosen to ensure a good agreement, however we cannot distinguish the exact size or number of domains imaged except when less than three are present.

Due to the six-fold symmetry the first Brillouin zone K points are all equivalent with respect to the proposed rotational disorder. This is not the case for the higher order Brillouin zones (BZ2, BZ3 and BZ4 in figure 2) where the axis of rotation no longer lies in the ${\overline {\Gamma K}}$ direction. Investigation of the higher Brillouin zone experimental spectral functions (presented in figure 4) then provides an important test of the rotational disorder model. The size (peak position) and intensity (peak amplitude) of the Fermi surfaces at each of the higher Brillouin zone locations are again well described by the rotational disorder model (15 domains, ±0.15° rotational spread). In particular figure 4(b)(ii) indicates that the experimental Fermi surface intensity has a maximum at ∼ 190° (dash dot dot, light green, line) rather than the expected 180°, which is predicted by the rotational disorder model (dash dot, red, line).

The 'peanut' shape of the Fermi surface anisotropy (figure 4(a)(iii)) is observed in the second Brillouin zone, However this becomes more oval shaped in the third (b)(iii) and fourth (c)(iii) Brillouin zones as the axis of rotational disorder no longer aligns with the intensity anisotropy axis [5]. This variation is also well described by the rotational disorder model.

Further evidence for the rotational disorder is found in experimental Fermi surface intensity profiles (dashed lines) in the ${\overline {KK}}$ and the ${\overline {\Gamma K}}$ directions (figure 2(c)) taken from three distinct regions on an argon grown sample. The intensity profile from the semi-empirical model, with the ±0.15° rotational disorder, is overlayed in red (solid line). The spectra were obtained from the first Brillouin zone K point and show a similar width and shape in the ${\overline {\Gamma K}}$ direction (figures 2(c)(ii), (iv) and (vi)). In contrast three distinct line shapes are observed in the ${\overline {KK}}$ direction (figures 2(c)(i), (iii) and (v)).

The most commonly observed lineshape across several samples is shown in figure 2(c)(i) and is well described by the rotational disorder model (15 domains within the ±0.15° rotational spread). The other two spectra are rare compared to the ±15° rotationally disordered spectra but provide a significant insight. In figure 2(c)(iii) an asymmetric line shape is observed. This asymmetry is described by a model including only two rotational domains (±0.15° rotated) with an intensity ratio of 2:1 between them. The final region (figure 2(c)(v)) has a similar lineshape in the ${\overline {KK}}$ and ${\overline {\Gamma K}}$ direction, corresponding to a region containing only a single rotation.

Comparison of experimental angle resolved photoemission spectra from 'vacuum grown' and 'argon grown' epitaxial graphene on SiC(0001) to a semi-empirical model confirms the existence of a ⩽ ± 0.15° rotational disorder of the Fermi surface. This disorder is attributed to a number of rotated graphene domains within the 50 μm photon beam size. Experimental data from regions of a vacuum grown sample which show only one and two rotational domains are also presented, however these are rare compared to the ±0.15° rotationally disordered spectra. Importantly the scale of the rotation (±0.15°) is very difficult to analyze by modern imaging techniques, such as low energy emission spectroscopy, photoelectron spectroscopy and scanning tunneling microscopy, and the common diffraction techniques, low energy electron diffraction and reflection high energy electron diffraction. It is therefore shown that detailed analysis of ARPES features can provide information on small scale structure variations not possible until now.
