Engineering the work function of armchair graphene nanoribbons using strain and functional species: a first principles study

The work function of an AGNR is defined as the energy difference between the vacuum and Fermi levels

$$\begin{eqnarray} &&\phi ={V}_{\mathrm{vacuum}}-{E}_{\mathrm{Fermi}}. \end{eqnarray} \tag{ 1 }$$

In numerical calculations, the Fermi level E_Fermi is determined by integrating the density of states from the lowest energy level to an energy level (i.e. the Fermi energy) which gives a total number of electrons in the unit cell. Specifically, in this work, the Fermi level of the semiconducting AGNRs was set to be the middle of the bandgap. The vacuum potential V_vacuum is read from the plot of planar-average electrostatic potential energy along the z direction (i.e. pick the value in the middle of the vacuum from the plot). All electronic energies of a ribbon in this study are referenced to its vacuum potential energy.

The work function of the AGNRs was studied as a function of uniaxial strain. Both edge-H and edge-O passivation were investigated for AGNRs with different widths. As an example, the strain dependence of the work function in the AGNRs with a width of 14 C atoms is plotted in figure 2. It was found that the work function increases with tensile strain and decreases with compressive strain. This observation is similar to the result obtained with a strained 2D graphene sheet [18].

Zoom In Zoom Out Reset image size

Since the work function is determined by two energy levels, E_Fermi and V_vacuum, it is worth examining the strain dependence of these two terms. Figure 3(a) shows the Fermi and vacuum levels as a function of strain for the edge-H passivated AGNR. It shows that the strain has a dominating effect in shifting the Fermi level while it has only a minimal effect on the vacuum potential energy. For example, the change of the Fermi energy within the strain range considered in this study is 1.59 eV, while the variation of the vacuum level is only 0.13 eV, which suggests that the variation of the work function is mainly contributed by the shift of the Fermi level.

Zoom In Zoom Out Reset image size

As shown below, the variation of the work function is also correlated to the core level shift of carbon atoms in the AGNR. To see this, the work function is rewritten as the following formula [42, 43] by inserting the average electrostatic potential energy at carbon ionic cores V_core

$$\begin{eqnarray} &&\phi =({V}_{\mathrm{core}}-{E}_{\mathrm{Fermi}})-({V}_{\mathrm{core}}-{V}_{\mathrm{vacuum}}). \end{eqnarray} \tag{ 2 }$$

The first term is used for determining the core level shift in a solid film. The second term corresponds to the core level shift relative to the vacuum level.

Both terms in equation (2) can be referenced to their values of the relaxed AGNR and plotted in figure 3(b), where

$$\begin{eqnarray} \displaystyle \fl \Delta ({V}_{\mathrm{core}}-{E}_{\mathrm{Fermi}})&&\displaystyle \\ \displaystyle =\mathop{({V}_{\mathrm{core}}-{E}_{\mathrm{Fermi}})}\nolimits _{\varepsilon }-\mathop{({V}_{\mathrm{core}}-{E}_{\mathrm{Fermi}})}\nolimits _{0}&&\displaystyle \end{eqnarray} \tag{ 3 }$$

$$\begin{eqnarray} \displaystyle \fl \Delta ({V}_{\mathrm{core}}-{V}_{\mathrm{vacuum}})&&\displaystyle \\ \displaystyle =\mathop{({V}_{\mathrm{core}}-{V}_{\mathrm{vacuum}})}\nolimits _{\varepsilon }-\mathop{({V}_{\mathrm{core}}-{V}_{\mathrm{vacuum}})}\nolimits _{0}.&&\displaystyle \end{eqnarray} \tag{ 4 }$$

The referenced core level shift relative to the vacuum level in equation (4) decreases (increases) with tensile (compressive) strain. Its variation with strain is nearly linear. The change of this shift with strain is mainly due to the electrostatic potential variation with the modulated distance between ionic cores and valence electrons [44]. When the ribbon is under a tensile strain, the valence electrons are further apart from the ionic cores, so the electrostatic potential contributed to the ionic cores by valence electrons is reduced. This causes the potential energy of the ionic cores to decrease.

The core level shift relative to the Fermi energy in equation (3), however, demonstrates a different behavior with strain, shown in figure 3(b). From the curve, we can see that this shift is reduced significantly to a smaller value in the compressed strain while the tensile strain barely affects the value. Here, the change in the electrostatic potential due to the variation of the distance between the ionic cores and valence electrons may have been dominated (nearly canceled) by the shift of the Fermi energy in the compressed (expanded) AGNR.

In addition, we studied AGNRs with different widths, such as 12 and 13 carbon atoms in the zigzag direction. The general trends presented in figures 2 and 3 are also valid for those widths. The distinct trend of a core level shift relative to the Fermi energy under tensile and compressive strain make the traditional electron spectroscopy tools such as x-ray photoelectron spectroscopy valuable for characterizing the strain in graphene [45, 46]. This is attractive in practise since the strain can be easily introduced into the monolayer graphene structures during preparation processes.

In figure 2, it is also found that the work function of the edge-O passivated AGNRs is higher than that of the edge-H passivated nanoribbons under a moderate strain. At a strain larger than ∼4%, the difference in the work function between these two types of edge passivation increases, while this difference starts to reduce under a compressive strain (∼ − 12%). As shown below, the deviation of the work function trend under large compressive/tensile strains is correlated to structural/electronic transition of the edge-O passivated AGNRs.

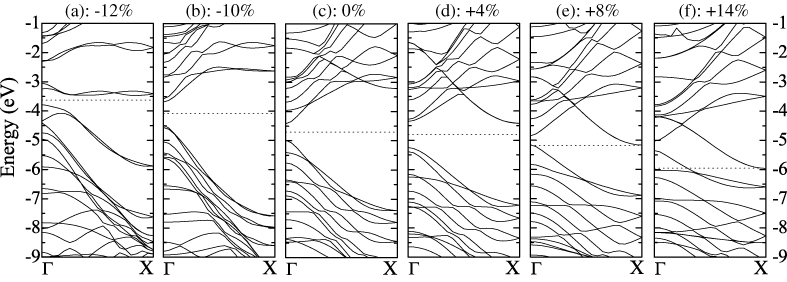

It is interesting to observe electronic and structural transitions in the edge-O passivated AGNRs under large uniaxial tensile and compressive strain, respectively. When a large tensile strain is applied, the bandgap of the AGNRs shrinks to zero [24]. For example, the ribbon with a width of 14 C atoms demonstrates a zero-gap at  + 8% strain. In order to closely examine the gap variation with strain, the band structures of the edge-O passivated AGNR under different values of strain are presented in figure 4. Under  + 4% strain, the bandgap experiences a transition from direct to indirect. With increasing tensile strain, the indirect gap decreases to zero at  + 8% strain. Beyond  + 8% strain, no gap exists. This electronic evolution with strain is mainly due to edge defects produced by tensile strain (for a detailed discussion please refer to [24]). The direct–indirect gap transition is also related to the significantly higher work function of the edge-O AGNR at large tensile strain (see figure 2).

Zoom In Zoom Out Reset image size

On the other hand, the band structure of the AGNR under  − 12% strain is largely deviated from the relaxed one. It was found that a structural transformation occurs at this strain and larger compression. To illustrate the structural transition, the geometries of the relaxed and  − 12% strained AGNRs are shown in figures 5(a) and (b). The pentagon formed by the edge-O and four neighboring Cs in figure 5(a) transfers to a heptagon under  − 12% strain in figure 5(b). And the hexagon formed by six C atoms (labeled 2, 4, 6, 1', 3', and 5' in figure 5(a)) transforms to a quadrilateral in figure 5(b). Besides these rearrangements near the edges of the ribbon, the bond lengths of horizontal carbon pairs (i.e. C3–C4, C5–C6, C9–C10, C11–C12, C13–C14, C15–C16, etc) are distinct in the relaxed and  − 12% strained AGNRs. For example, in the relaxed ribbon the pairs C3–C4, C9–C10, and C13–C14 form a C–C bond with bond lengths ∼1.4 Å, while pairs C5–C6, C11–C12, and C15–C16 do not form bonds with C–C distances ∼2.7 Å. However, the opposite is the case in the  − 12% strained ribbon, where the latter pairs all form C–C bonds while the former pairs are apart, as shown in figure 5(b). The detailed bond lengths of these two structures are listed in table 1. A similar structural transformation was also found at the  − 12% strain in the edge-O passivated ribbon with widths of 12 and 13 C atoms.

Zoom In Zoom Out Reset image size

The starting ribbon is a geometrically relaxed edge-H passivated AGNR with a width of 14 C atoms, as shown in figure 6(a). Based on this ribbon, different surface species, such as H, F, and OH, are decorated on the ribbon surface on either one side or both sides. The number of decorating surface species varies as 2, 4, 6, and 8, with each addition of one surface atom corresponding to an increment of 3.57% surface coverage (i.e. 1/28, 28 being the number of carbon atoms in the unit cell). For example, figures 6(b) and (c) show the geometrically relaxed ribbons with four and eight H atoms (represented by 4H and 8H) decorated on one side of the ribbon, respectively. It is clear that the ribbons were bent for these cases due to the lattice distortion by the surface decorated species on the same side [26]. The bent geometry compromises the local stress induced by the lattice distortion. Figure 6(d) shows the relaxed structure of eight H atoms on both sides of the ribbon (4H on each side). The ribbon is not bent and is nearly planar. For the other species, F and OH, the relaxed ribbons are similar to those shown in figures 6(b)–(d).

Zoom In Zoom Out Reset image size

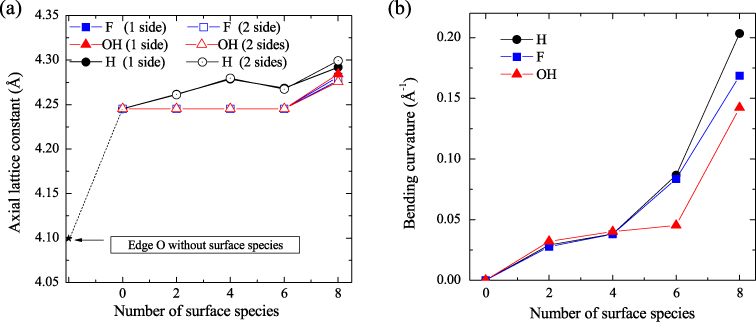

The structures of all AGNRs with different surface species were fully relaxed through energy minimization. The lattice constants of the AGNRs were also optimized so that the force and stress components on each atom were converged to within 0.02 eV Å⁻¹ and 1.0 kbar, respectively. The optimized lattice constants are reported in figure 7(a). This shows that the edge-O passivated ribbon without surface species has the shortest lattice constant of 4.10 Å. For the edge-H passivated ribbon, the lattice constant increases to 4.25 Å. The lattice constant slightly increases with the number of surface H species decorated on the ribbon, to 4.30 Å with eight surface H atoms. A similar effect was also found in the surface species F and OH. In addition, for the same number of surface species, there is no significant difference in the lattice constant between the cases of one-side and two-side decoration.

Zoom In Zoom Out Reset image size

As shown in figures 6(b) and (c), the relaxed ribbons are bent if the species are decorated on one side of the ribbon. Increasing the density of the surface species will increase the ribbon bending curvature (defined as 1/R, where R is the radius of the bending ribbon). The bending curvature of the AGNRs as a function of surface species coverage is plotted in figure 7(b). It is clear that the curvature increases rapidly with increasing number of surface species. For example, the curvature of the ribbon with 4H and 8H surface species are 0.038 Å⁻¹ and 0.203 Å⁻¹, respectively, which have corresponding curvature radii of 26.12 Å and 4.92 Å, respectively. In addition, the AGNRs with widths of 12 and 13 C atoms in the zigzag direction were explored. Our calculations showed that there is no distinct difference in the predicted curvature for the AGNRs with different widths. Our calculated bending structures and curvatures of AGNRs were consistent with that of first principles molecular dynamics simulation conducted by Yu and Liu [26].

Electronic properties were investigated for the AGNRs with different surface species. As an example, band structures and the corresponding density of states (DOS) for the AGNRs with one-side surface species decoration are plotted in figure 8. As a reference, the band structure and DOS for the starting ribbon (i.e. the edge-H passivated ribbon without surface species) is also presented in figure 8(a). All energies are referenced to the vacuum level. The Fermi level is represented by the horizontal dashed line. It was known that the edge-H passivated AGNR is a semiconductor, shown in figure 8(a). However, introduction of the surface species, such as H, F, and OH, bring surface states near the Fermi level. Increasing the coverage density of the surface species, the band structures and DOS are deviated farther from that of the starting ribbon. For example, figures 8(b), (f), and (j) display the band structures and DOS for 2H, 2F, and 2OH surface species, respectively. Two surface states were brought in near the Fermi level. However, the energy bands and DOS in which energies are far away from the Fermi level are similar to that of figure 8(a). Increasing the number of surface species from two to four, more surface states were shown near the Fermi level, and the DOS is further modified, as shown in figures 8(c), (g), and (k). Continuing to increase the number of the surface species to six and eight, the band structure and DOS were significantly modified.

Zoom In Zoom Out Reset image size

We also studied the band structures and DOS for the AGNRs with surface species decorated on both sides of the ribbon. It is interesting to note that the band structures and DOS are very similar to those of one-side decoration. For example, the band structure and DOS for the AGNR with each side decorated by one H atom is very close to the one in figure 8(b).

The calculated work function of the AGNRs is reported as a function of the number of surface species in figure 9. Generally, different surface species affect the work function in a different manner. For example, adding surface H to the ribbon decreases its work function, while adding surface F or OH increases the work function. Therefore, the surface species can be classified into two groups, one increasing the work function (such as F and OH) and the other reducing it (such as H).

Zoom In Zoom Out Reset image size

The work function shift due to surface decoration could come from two sources: (i) molecular dipoles formed between the decorated species and the ribbon surface; (ii) charge rearrangements induced by the chemical bond formation between the decorated species and the ribbon surface [47–49]. We argued that the work function shift here is primarily due to the latter reason. This can be seen from the surface states introduced near the Fermi level in the band structures (figure 8). These surface states come from the transition of carbon atoms from sp² to sp³ hybridization [30]. F and OH with a higher electronegativity could introduce deeper states while H with a lower electronegativity could introduce shallower states. For example, the surface bands introduced by 2F and 2OH surface species are in the range of  − 4.5 to  − 5.5 eV, and  − 4.2 to  − 5.0 eV, respectively (see figures 8(f) and (j)). However, the surface band introduced by 2H species is in the range of  − 3.9 to  − 4.2 eV, which is much shallower, shown in figure 8(b).

The contribution of the molecular dipole from surface decoration can be evaluated from the work function difference between one-side and two-side decoration. In one-side decoration, the molecular dipole will introduce an additional potential change to the vacuum level [47, 50], while in the two-side decoration, molecular dipoles on the two faces will tend to cancel each other. From figure 9, it is found that work function difference between one-side and two-side decorations is small, which suggests the introduced surface dipole plays a minor role here. The molecular dipole C⁺–F⁻/C⁺–OH enhances the potential barrier to the vacuum level [47, 50] For the H group, however, the molecular dipole C⁻–H⁺ reduces this potential barrier. Another possible factor contributing to the work function difference between one-side and two-side decoration is the deviation in the ribbon geometries, which indicates the existence of the different local strain at these two cases. For example, for the 8H surface species, the two-side decoration yields a nearly planar ribbon, while the one-side decoration produces a largely bent structure, shown in figures 6(d) and (c).
