Electronic structure and quantum criticality in Ba(Fe_1-x-y Co_xMn_y)₂As₂, an ARPES study

In many compounds such as heavy-fermion systems, doped cuprates, molecular crystals, and ferropnictides [1,2], unconventional/high-temperature superconductivity occurs close to a point in the phase diagram where at zero temperature the antiferromangetic order vanishes. The transition into the superconducting region can be induced by pressure, chemical pressure, doping, or some other control parameter. Different from a temperature-driven transition, large quantum fluctuations are expected in the zero-temperature phase transitions which led to the introduction of the term quantum criticality [3,4]. A non-Fermi-liquid behavior is detected near the quantum critical point, which is related to a diverging effective mass and scattering rate and to the disappearance of the quasiparticle spectral weight at the Fermi level. The general explanation for the deviation from a Fermi liquid behavior in this region of the phase diagram is that electrons strongly interact with collective modes related to the antiferromagnetic (AFM) order. It is supposed that the superconducting phase, appearing close to the quantum critical point, is due to a coupling of the charge carriers to these quantum fluctuations. This would provide a universal explanation of the pairing mechanism in unconventional superconductors. Both quantum critical phenomena and unconventional superconductivity are major themes in current condensed-matter physics.

For the iron pnictides the quantum criticality scenario has been proposed theoretically by Dai et al. [5]. Experimentally, in ferropnictides, the scheme of a quantum critical point is supported by transport and thermodynamic measurements on chemically pressurized $\text{BaFe}_{2}\text{As}_{2-x}\text{P}_{x}$ or $\text{EuFe}_{2}\text{As}_{2-x}\text{P}_{x}$ [6–10], on p-type doped $\text{K}_{x}\text{Ba}_{1-x}\text{Fe}_{2}\text{As}_{2}$ or $\text{K}_{x}\text{Eu}_{1-x}\text{Fe}_{2}\text{As}_{2}$ [9,11], and n-type doped $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$, [12,13].

Angle-resolved photoemission spectroscopy (ARPES) [14] is particularly suited to address the question whether a quantum critical scenario applies, since it not only reveals the Fermi surface topology, but offers also the unique possibility to determine the momentum-dependent spectral function which contains information on the complex self-energy $\Sigma=\Sigma'+i\Sigma''$, which is related to the mass renormalization and the scattering rate. Moreover, we emphasize that with momentum-dependent ARPES data, in contrast to results from macroscopic methods, it is possible to distinguish between the hot and cold spots on the Fermi surface. In the ferropnictides, the hot spots are caused by a partial nesting between hole and electron pockets, yielding the AFM order, potential AFM quantum fluctuations, and possibly also superconductivity. The cold spots determine the transport and thermodynamic properties in the normal state. A variation of the charge carrier dynamics at different points of the Fermi surface is expected due to the changes of the nesting conditions and/or the orbital character of the Fermi surface in k-space [15].

In this letter we report an electronic structure study of $\text{Ba(Fe}_{1-x-y}\text{Co}_{x}\text{Mn}_{y})_{2}\text{As}_{2}$ (BFCMA) by means of ARPES. We focus on a series of crystals with $x=0.06$ and a variable Mn substitution with $0\le y \le 0.07$. For y = 0, T_c is close to its optimal value and close to the extrapolated zero-temperature value of T_N. Thus, within a quantum critical scenario we should find diverging effective masses and scattering rates. With increasing Mn substitution, previous studies on the same system have detected a rapid decrease of T_c, the disappearance of superconductivity near $y=0.02$ [16], and a T_N which reaches a maximum of $23\ \text{K}$ at $y=0.01$ and disappears near $y=0.03$ [17]. This signals that, with increasing Mn substitution, one departs from a possible quantum critical point and therefore the scattering rates and the mass renormalization should be reduced.

In the most simple picture, the substitution of Fe by Mn leads to hole doping and thus one should move to a lower total electron number. However, studies on Mn substituted ferropnictides indicate that the case is by far more complex. Although T_N decreases with increasing Mn concentration, a superconducting dome does not appear [18]. Rather a transition into a new magnetic phase at a Mn concentration near 12% is discussed [19]. This is in stark contrast to the hole-doped system with K substitution on the alkaline-earth site. This discrepancy was interpreted in terms of structural modifications rather than carrier doping [20] or by a correlation-related localization of the induced holes [21].

Our ARPES study on BFCMA reveals, contrary to the above-mentioned naively expected hole doping, no decrease of the total number of charge carriers upon Mn substitution. Moreover, upon Mn substitution the scattering rates and the mass renormalization do not decrease indicating that there is no pronounced coupling of spin fluctuations to the charge carriers exactly at optimal doping.

Single crystals of BFCMA were grown from the self-flux and characterized by resistivity, magnetization, specific heat, and dilatometry measurements [17]. ARPES measurements were carried out at the synchrotron radiation facility BESSY II using the UE112-PGM2a beam line and the "1²"-ARPES end station equipped with a Scienta R8000 analyzer. The total energy resolution was $10\text{--}15\ \text{meV}$, while the angular resolution was 0.2°. All measurements were performed in the paramagnetic and non-superconducting range near $T=30\ \text{K}$. For the presentation we use a coordinate system parallel to the Fe-Fe direction as in our previous ARPES study [22].

We performed density functional theory (DFT) calculations within the generalized gradient approximation (GGA) [23] using the scalar relativistic mode of the full potential local orbital (FPLO) code [24]. The doping was simulated by constructing supercells with $x=0.06$ and y = 0 or 0.07. For k-integration we used the tetrahedron method with 6³ points in the full Brillouin zone of the resulting unit cells with 16 Fe(Co/Mn) positions. We constructed 4 different cells for $y=0.07$ with different relative Co-Mn arrangements. The As position and lattice parameters are taken from experimental X-ray diffraction data [17].

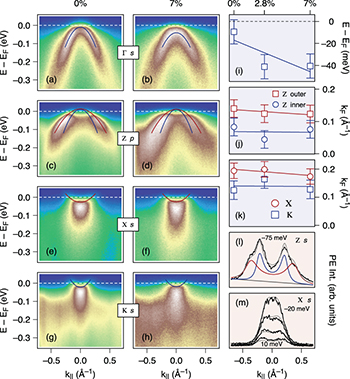

ARPES spectra of BFCMA $x=0.06$ and $y= 0$, 0.028, and 0.07 were measured near the four high-symmetry points Γ, Z, X, and K along the k_y-direction using s (perpendicular to k_x) and p (parallel to k_x) polarized light. The high-symmetry points were reached by using variable photon energies as outlined in our previous studies of ferropnictides [22]. In fig. 1(a)–(h) we show representative intensity plots as a function of binding energy. Due to matrix element effects, in the present geometry for s-polarization we detect at Γ and Z bands which have odd symmetry relative to the scattering plane, i.e., bands having predominantly Fe 3d xz/yz orbital character forming the two inner, almost degenerate hole pockets [22,25]. For p-polarization we detect in addition bands with predominantly xy and z² (even) orbital character, forming the outer hole pocket. At Γ near the Fermi level, the inner and the outer hole pockets are almost degenerate (see fig. 1(a)). This was also derived from spectra measured with p-polarized light (not shown). At the Z-point, the inner and outer hole pockets are clearly separated as seen in the intensity plots measured with p-polarization (see fig. 1(c), (d) and in the momentum distribution curve measured with s-polarized light (see fig. 1(l)). At X and K we detect for s-polarization the electron pocket (see fig. 1(e)–(h)) which has, at that point, predominantly xz/yz character, while (not shown) for p-polarization the spectral weight is rather small due to matrix element effects.

Zoom In Zoom Out Reset image size

Using momentum distribution curves we have determined the dispersion of bands, whereby we have approximated the dispersion by a second-degree polynomial. The results are shown in fig. 1 by red/blue lines. The Fermi wave vectors that can be obtained from these dispersions are presented in fig. 1(j), (k). Since for $x=0.06$ the inner and probably also the outer hole pockets are completely filled, we show for the inner hole pocket the energy of the band maximum relative to the Fermi level (see fig. 1(i)).

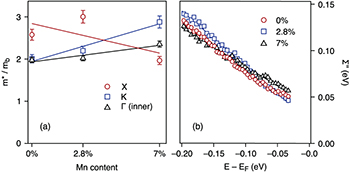

In fig. 2(a) we depict the mass enhancement $m^*/m_b$ near high-symmetry points as a function of Mn concentration. Here $m^*$ is the mass derived from the measured dispersion and m_b is the mass derived from tight-binding band structure calculations parameterized using a DFT calculation [26]. In the evaluation, we used the approximation that m_b is independent of the substituent concentration. Using the measured dispersion as an input for $\epsilon_k-\Sigma'$ ($\epsilon_k$ is the bare particle dispersion) in the formula for the spectral function [14] an MDC fit yields values for $\Sigma''$ for the inner hole pocket along the k_y-direction near Γ which are presented in fig. 2(b) for three different Mn concentrations. Previous ARPES studies on $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$ have shown that surface-related bands overlapping the bulk bands question an accurate evaluation of $\Sigma''$ in $\text{BaFe}_{2}\text{As}_{2}$ related compounds [27]. Since these bands appear at a binding energy of $200\ \text{meV}$, we only present experimental values for $\Sigma''$ at smaller energies. An other problem would be disorder caused by the non-periodic potential of the dopant ions or by the complex structure of the surface atoms. On the other hand, the disorder-induced elastic scattering rate is believed to contribute an energy-independent part [28], while considering quantum criticality, the energy-dependent part is of importance.

Zoom In Zoom Out Reset image size

First we discuss the question whether Mn substitution into BFCMA induces holes. Already the shift of the hole pockets at Γ to higher instead of lower binding energies is at odds with the naive expectation of hole doping. The shift of the hole pocket band can be explained by a change of the crystal field splitting of the Fe 3d states, induced by the substitution of the larger Fe ions by the smaller Mn ions. Such band shifts in a non-rigid band picture were also observed in an ARPES study of $\text{EuFe}_{2}\text{As}_{2-x}\text{P}_{x}$ in which the larger As ions were replaced by the smaller P ions [22]. In this context one should also mention that a strong increase in the Fe-As distance upon Mn substitution has been detected [20]. A more detailed analysis of the number of holes and electrons in BFCMA, presented in the following, supports the suggestion that substitution of Fe by Mn does not lead to hole doping. We have evaluated the volume of the Fermi cylinders using the k_F values presented in fig. 1(j), (k). The k_F values between $k_z = 0$ and π where interpolated by a cosine function which is a good approximation as demonstrated in our previous work [22] on $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$, where we have measured the full k_z dispersion. Furthermore we took into account that the inner hole pocket and the electron pocket are doubly degenerate. In this way we obtain for the optimally Co-doped compound without Mn substitution a total number of electrons per transition metal site $n_e= 0.058\pm0.012$ corresponding to an electron doping of $1.0 \pm 0.2\ \text{e/Co}$. Using the data from the Mn substituted samples we obtain for $y=0.07$ a decrease of the number of electrons per transition metal site of $0.009 \pm 0.02$ corresponding to hole doping of $0.1 \pm 0.2\ \text{h/Mn}$. Thus, from our analysis we derive that within error bars there is no hole doping upon substitution of Fe with Mn.

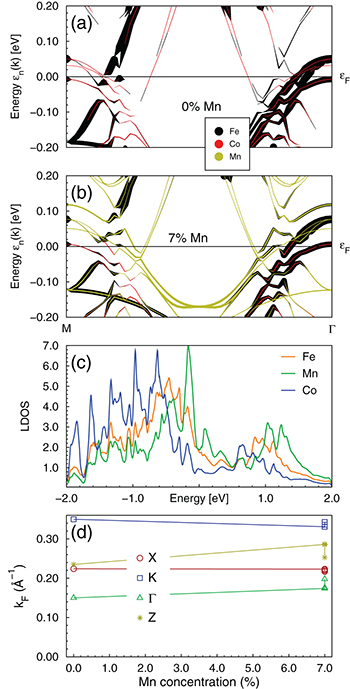

The comparison of the ARPES data with the DFT results (see fig. 3) does not prove satisfactory. Contrary to the experimental data, upon Mn substitution the calculated hole pockets near Γ move to lower binding energy (see fig. 3(a), (b)). Moreover, also the calculated k_F values (see fig. 3(d)) show an increase of the hole pockets and a small decrease of the electron pockets which would signal a considerable hole doping upon Mn substitution. A quantitative comparison between ARPES and DFT results is probably not meaningful since we know from dynamical mean-field calculations [29] that correlation effects lead to a considerable renormalization of the bands which is dependent on the orbital character. On the other hand, the DFT calculations provide the important result that there is a considerable Mn impurity density of state near the Fermi level (see fig. 3(c)) which could explain why Mn substitution is detrimental to superconductivity.

Zoom In Zoom Out Reset image size

Recent ARPES work [30] on Co, Ni, and Cu substituted $\text{BaFe}_{2}\text{As}_{2}$ together with theoretical work [31–33] indicated that electron doping occurs when there is an energetic overlap of the impurity states with the Fe 3d states. If the impurity potential is large, i.e., if the impurity states are well below the Fe 3d band, no hybridization takes place and a localization of the additional electrons occurs. In the case of Mn substitution, one may think that the Mn impurity states could be well above the Fe 3d band thus leading to the localization of the holes, observed in the present study and in previous Knight shift measurements [21]. On the other hand, looking at the calculated partial density of states shown in fig. 3(c), not only the Co but also the Mn impurity states overlap strongly with Fe 3d band states. Thus, the localization of the Mn impurity holes cannot be understood on the basis of the strength of impurity potential as in the case of Co, Ni, and Cu substitution. Probably the localization of the holes induced by Mn substitution is caused by correlation effects related to Hunds coupling, which are particularly strong for the half-filled 3d shell [29,34–36].

Next we discuss the possibility of a change of the mass renormalization as a function of the Mn concentration. We focus first on those parts of the Fermi surface which have predominantly xz/yz orbital character since, according to calculations in the random-phase-approximation [15,37], interband transitions between those bands should lead to the highest-spin fluctuation susceptibilities, i.e., in particular at those hot spots quantum criticality should occur. As shown in fig. 2(a), the mass renormalization of the inner hole pocket and the electron pocket does not show at these hot spots a decrease which would be expected for an increasing distance to the quantum critical point. Rather at least near Γ and K a slight increase is realized. In addition, we emphasize that close to the Fermi level we do not detect a deviation from a parabolic dispersion (see fig. 1(a)) which could be related to a low-energy mass enhancement. This is a first indication that from our ARPES experiments we cannot conclude on the existence of a quantum critical point near optimal doping. One may argue that upon Mn substitution, we remain at the quantum critical point. Therefore, we evaluated the effective masses of the same bands near Γ in $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$ and in $\text{EuFe}_{2}\text{As}_{2-x}\text{P}_{x}$ using our previous ARPES data [22]. In $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$ the effective masses remain nearly constant when going from optimal doping to the overdoped case. In $\text{EuFe}_{2}\text{As}_{2-x}\text{P}_{x}$ the effective masses remain constant within 2% when going from the undoped system (measured in the paramagnetic phase at $T = 220\ \text{K}$) to optimally substituted samples ($x=0.16$) to oversubstituted crystals ($x=0.22$). Thus, contrary to the de Haasvan-van Alphen measurements on $\text{BaFe}_{2}\text{As}_{2-x}\text{P}_{x}$, [6,10], an enhanced effective mass near optimal doping/substitution is not observed in our ARPES experiments neither in $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$ nor in $\text{EuFe}_{2}\text{As}_{2-x}\text{P}_{x}$ nor in BFCMA.

We expect a corresponding result for the scattering rates. As depicted in fig. 2(b), for the inner hole pocket $\Sigma''=\alpha+\beta E$, where $\alpha \approx 40\ \text{meV}$, is determined by elastic scattering due to defects, e.g. by a disordered Ba surface [27]. The coefficient $\beta \approx 0.5$ is a measure for the inelastic scattering rate related to electron-electron interaction, e.g. via a coupling to excitations of spin fluctuations. Our data on $\Sigma''$ reveal the same energy dependence for all Mn concentrations. It is remarkable that an evaluation of $\Sigma''$ of our previous $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$ data for $x=0.06$ to 0.2 yield a 20% increase instead of a decrease of the β values, when going from optimally doped to overdoped samples. Thus, also the scattering rates derived from our ARPES experiments on this system do not diverge at optimal doping and thus do not support a quantum critical point where a particularly large coupling of spin fluctuations to the charge carriers is expected.

One may argue that in the present ARPES experiments the temperature is too high to detect indications of quantum criticality in the pnictides. We emphasize that the strange behavior of the thermodynamic and transport properties was detected at comparable temperatures where the present information on the scattering rates was obtained. Furthermore one may question the significance of the results since the broadening of the spectral weight due to disorder and to a finite energy resolution (together $50\ \text{meV}$) is large compared to the energy of the superconducting gap. On the other hand, the energy scale of the antiferromagnetic fluctuations discussed in the context of quantum critical fluctuations is known from resonant inelastic X-ray experiments to be of the order of $150\text{--}200\ \text{meV}$ [38]. This energy scale is considerably larger than the observed broadening, and therefore a strong coupling to the fluctuations should be visible in the present ARPES results.

Since the thermodynamic and the transport properties may be determined by the cold spots of the Fermi surfaces we also discuss the renormalization of these bands although there is less information available from our ARPES measurements. The outer hole pocket has predominantly xy orbital character and, according to theoretical results [15,37], the susceptibility for spin fluctuations should be considerably smaller for this band. Indeed our ARPES data show strongly reduced scattering rates for the outer hole pocket although it is difficult to evaluate exact values for β. Finally, according to the RPA calculations [15,37], along the k_x-direction there should be also a part of the electron pocket with predominantly xy orbital character which should have a lower renormalization caused by electron-electron interaction. This is indeed observed in ARPES experiments by Brouet et al. [25] where the scattering rate of the electron pocket along k_y (yz character) is about twice as large as that along the k_x-direction (xy character). Thus, measured scattering rates do not indicate a strong renormalization for the cold spot with xy character at optimal doping.

In the present ARPES study of BFCMA at the hot spots we do not detect a particularly strong coupling to spin fluctuations at optimal doping which is expected in a quantum critical scenarios for unconventional superconductivity. The reason for this is probably that the energy scale of the spin fluctuation excitations, coupled to the charge carriers in a dynamical nesting process is rather high compared to the energetic changes of the band structure caused by Fe substitution. This view is supported by the resonant inelastic X-ray scattering study, already mentioned above, in which spin excitations in the energy range $150\text{--}200\ \text{meV}$ were detected with minor changes when going from the undoped AFM compound to the paramagnetic superconducting system [38]. In this way it is possible to understand the continuous development of the renormalization of the electronic structure in a large range of the control parameter which was also observed for the Drude scattering rates derived from optical spectroscopy [39].

The discrepancy between the ARPES results on BFCMA, $\text{Ba(Fe}_{1-x}\text{Co}_{x})_{2}\text{As}_{2}$, and $\text{EuFe}_{2}\text{As}_{2-x}\text{P}_{x}$, and the transport and thermal properties on the mass enhancement on similar compounds mentioned in the introduction is at present a puzzle and should be further investigated. It would be particularly helpful to study compounds in which the renormalization of all bands is accessible to ARPES experiments, e.g., on $\text{Na}\text{Fe}\text{As}$ or $\text{Li}\text{Fe}\text{As}$ [40]. On the other hand, having the present ARPES results at hand, one may speculate that the reason for the nonappearance of an enhanced scattering rate or mass enhancement near optimal doping may be related to single-particle properties. It is interesting to note that in other systems the strange properties near a quantum critical point are often discussed in terms of a single-electron model, e.g. by a band edge or a singularity in the density of states and/or changes in the topology of the Fermi surface [41]. In the ferropnictides such scenarios are possible since near optimal doping a Lifshitz transition is observed: the Fermi surface changes from a cylinder along the k_z-direction to an ellipsoid around the Z-point [22,42] (see also fig. 1(a), (b)). This observation may indicate the importance of this Lifshitz transition for the magnetic and the superconducting properties of pnictides.

We acknowledge funding by the DFG through the priority program SPP1458. We thank Peter Schweiss for providing X-ray diffraction data of the samples and Roman Schuster for helpful discussions.
