Luminosity-independent measurements of total, elastic and inelastic cross-sections at $\chem{\sqrt {s} = 7\,TeV}$

The TOTEM experiment has recently published [1, 2] the differential cross-section for elastic proton-proton scattering as a function of the four-momentum transfer squared, t. By extrapolation to t = 0, the cross-section dσ_el/dt|_t=0 at the optical point was determined. Integration of the differential distribution yields the elastic cross-section, σ_el. Applying the optical theorem, the total and the fully inclusive inelastic proton-proton cross-sections were derived, with a weak dependence on the ρ parameter (the ratio of the real to the imaginary part of the forward hadronic scattering amplitude):

$$\begin{equation} \sigma_{\rm tot}^2 = {16\pi\, (\hbar c)^2\over 1 + \rho^2}\, \left. {\rm d}\sigma_{\rm el}\over{\rm d} t\right|_{t=0},\qquad \sigma_{\rm inel} = \sigma_{\rm tot} - \sigma_{\rm el}. \end{equation} \tag{ 1 }$$

All these cross-sections are exclusively based on the measurement of the elastic scattering cross-section.

Moreover, taking advantage of the two trigger-capable forward charged-particle telescopes T1 and T2, the inelastic cross-section was also directly measured [3] using the same data set as in [2]. A small Monte Carlo correction (≈4%) was applied to account for the invisible events in the very forward direction |η| > 6.5, mainly due to low-mass single diffraction. The cross-sections values with their systematic uncertainties are summarized in table 1.

Table 1. Cross-section summary. The statistical uncertainties are negligible and therefore omitted. The systematic-uncertainty contributions are grouped into several categories –el (from the elastic-scattering analysis), inel (from the inelastic-scattering analysis), lumi (from the 4% uncertainty of the CMS luminosity measurement) and ρ (from the COMPETE ρ extrapolation, considering only the uncertainty of ±0.007 related to their preferred model) – together forming the full systematic uncertainty (components combined in quadrature, including their correlations).

	Elastic only: eq. (1) June 2011 published in [1]	Elastic only: eq. (1) October 2011 published in [2]	${\cal L}_{\mathrm { int}}$-independent: eq. (2) October 2011	ρ-independent: eq. (6) October 2011
	full	el  lumi  ρ ⇒ full	el  inel  ρ ⇒ full	el  inel  lumi ⇒ full
σtot (mb)	98.3±2.8	98.6±1.0±2.0±0.1⇒±2.2	98.0±1.8±1.7±0.2⇒±2.5	99.1±0.3±1.7±4.0⇒±4.3
σinel (mb)	73.5±1.6	73.2±0.8±1.0±0.1⇒±1.3	72.9±1.1±0.9±0.1⇒±1.5	73.7±1.7±3.0⇒±3.4
σel (mb)	24.8±1.2	25.4±0.3±1.0⇒±1.1	25.1±0.6±0.9±0.0⇒±1.1	25.4±0.3±1.0⇒±1.1

The excellent agreement between the two completely different measurements of the inelastic cross-sections confirms the understanding of the systematic uncertainties and corrections applied in both methods. Taking maximum advantage of the two measurements by combining them in different ways allows extracting more information from the data, such as

• luminosity-independent cross-sections,
• luminosity determination,
• ρ-independent cross-sections,
• luminosity- and ρ-independent cross-section ratios,
• ρ constraints.

The results presented in this article are obtained from the data collected in October 2011 (for details see table 1 in [2]). For completeness, some of the results will be compared to those of the lower-luminosity run from June 2011 [1], where only the elastic part of the analysis could be performed.

Using the optical theorem, one can combine the elastic measurements from [2] and the inelastic measurements from [3] to derive the total cross-section without the knowledge of the luminosity:

$$\begin{equation} \sigma_{\rm tot} = {16\pi\, (\hbar c)^2\over 1 + \rho^2}\, {{\rm d} N_{\rm el}/{\rm d} t|_{t=0} \over N_{\rm el} + N_{\rm inel} }, \end{equation} \tag{ 2 }$$

where N_el and N_inel stand for rates integrated over the run period. Taking ρ = 0.141 ± 0.007 from the COMPETE extrapolation [4] yields the luminosity-independent total cross-section, see table 1. Furthermore, using the measured ratio N_el/N_inel, also the elastic and inelastic cross-sections can be derived independently from the luminosity. These cross-sections are given in table 1 with their uncertainty compositions.

The optical theorem can also be applied in a complementary way such that the luminosity is determined:

$$\begin{equation} {\cal L_{\rm int}^{\rm TOTEM}} = {1 + \rho^2 \over 16\pi\, (\hbar c)^2}\, { (N_{\rm el} + N_{\rm inel})^2 \over {\rm d} N_{\rm el}/{\rm d} t|_{t=0} }. \end{equation} \tag{ 3 }$$

Thus, integrating the rates over the data-taking period during which the elastic [2] and inelastic [3] interactions have independently but simultaneously been measured, the integrated luminosity ${\cal L}_{\mathrm { int}}^{\rm TOTEM}$ is obtained. Using the above ρ value, the luminosity determined by TOTEM for the October run is compared in table 2 to the one obtained by CMS in a completely different way. Both measurements agree well within their uncertainties.

Table 2. The integrated luminosities for the October and June data sets as determined by different experiments and different methods.

Data set	Method	${\cal L}_{\mathrm { int}}$ (μb−1)
October	TOTEM, eq. (3)	83.7±3.2
	CMS	82.8±3.3
	TOTEM, eq. (4)	1.66±0.08
June	TOTEM, eq. (5)	1.65±0.07
	CMS	1.65±0.07

Once the cross-section of a process is known, it can be, in general, used for luminosity determination. In particular, knowing the total and elastic cross-sections, the integrated luminosity of the earlier June run [1] has been calculated from the elastic scattering rates dN_el/dt|_t=0 and N_el, which are of course highly correlated:

$$\begin{equation} {\cal L}_{\rm int}^{\rm June} = {16\pi\, (\hbar c)^2\over 1 + \rho^2}\, \left. {\rm d} N_{\rm el}^{\rm June}\over{\rm d} t\right|_{t=0}\, {1\over \sigma_{\rm tot}^2}, \end{equation} \tag{ 4 }$$

$$\begin{equation} {\cal L}_{\rm int}^{\rm June} = {N_{\rm el}^{\rm June}\over \sigma_{\rm el}}. \end{equation} \tag{ 5 }$$

The luminosity-independent values for the total and elastic cross-sections (see table 1) yield the integrated luminosities for the June run, which are again in excellent agreement with the CMS results, see table 2.

ρ enters into the equations when the optical theorem is used. However, a ρ-independent determination of the total cross-section can be obviously obtained by summing directly the elastic [2] and inelastic [3] cross-sections:

$$\begin{equation} \sigma_{\rm tot} = \sigma_{\rm el} + \sigma_{\rm inel}. \end{equation} \tag{ 6 }$$

These ρ-independent cross-sections (see table 1) have a larger uncertainty due to the direct propagation of the luminosity uncertainty which, however, cancels for the cross-section ratios

$$\begin{eqnarray*} &&{\sigma_{\rm el} \over \sigma_{\rm inel}} = 0.345 \pm 0.009,\qquad {\sigma_{\rm el}\over \sigma_{\rm tot}} = 0.257 \pm 0.005. \end{eqnarray*}$$

The elastic and inelastic measurements can be combined in order to determine ρ²:

$$\begin{equation} \rho^2 = 16\pi\ (\hbar c)^2\ {\cal L_{\rm int}^{\rm CMS}} {{\rm d} N_{\rm el}/{\rm d} t|_{t=0}\over (N_{\rm el} + N_{\rm inel})^2} - 1. \end{equation} \tag{ 7 }$$

Note that this is a direct measurement at $\sqrt s = 7\,{\mathrm { TeV}}$, not an extrapolation from lower-energy measurements. Inserting the values from [2, 3] and the CMS luminosity measurement yields ρ² = 0.009 ± 0.056 (mean and standard deviation). This estimate of ρ² cannot be translated into terms of ρ in a straight-forward manner since an important part of the ρ² distribution extends to negative values, where the square root is not defined. Instead, one can state that at 95% confidence level ρ² < 0.10. This upper bound can be equally expressed as ρ < 0.32. Alternatively, one can pursue Bayes' approach to estimate |ρ|. Taking a uniform prior |ρ| distribution, it yields a posterior distribution with mean 0.145 and standard deviation 0.091.

The total, elastic and inelastic cross-section values obtained with different methods and data sets (summarized in table 1) show excellent agreement. In particular, the inelastic cross-sections from two completely independent measurements, once determined from the elastic measurement with the Roman Pot detectors and once directly from the more central charged-particle telescopes, agree remarkably well with each other and also with the ALICE [5], ATLAS [6] and CMS [7] results (see fig. 1, right).

Zoom In Zoom Out Reset image size

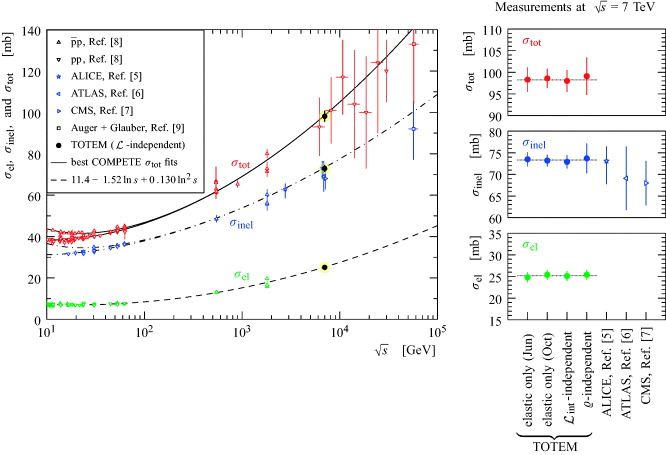

The energy dependence of the proton-(anti)proton cross-sections is shown in fig. 1, left. The best fit of σ_tot(s) by the COMPETE Collaboration [4] (published before the TOTEM result) describes the energy dependence well even up to the highest energies measured.

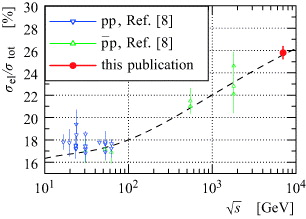

The ratio σ_el/σ_tot can give some insights into the shape and the opacity of the proton, subject to model-dependent theoretical interpretations. The steady rise of this ratio with energy (fig. 2 compiled from[8]) is often interpreted as the increase of proton size and opacity with energy.

Zoom In Zoom Out Reset image size

The LHC energy begins to overlap with the energy range where large-area cosmic-ray showers are studied (see fig. 1). Investigations of high-energy proton-proton interactions at the LHC are therefore of high importance for the study of the development of cosmic-ray showers in the atmosphere and thus for high-energy cosmic-ray interpretations, like, e.g., the energy spectrum and particle composition [9]. The most important observable is the shower maximum X_max which is related to the primary particle mass. It strongly depends on the inelastic proton-air cross-section. It is worth mentioning that calculations of hadron-nucleus cross-sections in the Glauber-Gribov formalism [10, 11] require the knowledge of not only the inelastic pp cross-section but also the proton-proton elastic scattering amplitude in the small |t|-range. The latest Auger measurement of the inelastic cross-section at $\sqrt s = 57\,{\mathrm { TeV}}$ [12] (fig. 1) used the TOTEM cross-section values as an input. In addition, all kinds of diffractive phenomena influence the development of the shower cascade and the multiplicity fluctuations of secondary hadrons [13]. Thus, the measurements of the pp cross-sections and the particle flow are of high importance for the interpretation of cosmic-ray showers.

Within the currently available |t|-range and with the present experimental resolution, no effects due to the Coulomb interaction have been observable. Therefore, the obtained elastic scattering |t|-distribution has been – within the experimental uncertainties – attributed to the hadronic component only, used in the optical theorem. Moreover, a larger-β* optics (β* = 1000 m) has been developed. A recent successful run with this optics has demonstrated that |t|-values down to 0.0005 GeV² can be attained. A study of the Coulomb-hadronic interference and an observation of the low-|t| hadronic cross-section are, therefore, in reach.

We are indebted to the beam optics development team for the design, the thorough preparations and the successful commissioning of the β* = 90 m optics. We congratulate the CERN accelerator groups for the very smooth operation in 2011. We thank the LHC physics coordinators for scheduling the dedicated fills.

We are grateful to CMS for providing their luminosity measurements.

We thank S. Ostapchenko and R. Ulrich for valuable discussions on the cosmic-ray implications of our results.

This work was supported by the institutions listed on the front page and partially also by NSF (US), the Magnus Ehrnrooth foundation (Finland), the Waldemar von Frenckell foundation (Finland), the Academy of Finland, the Finnish Academy of Science and Letters (The Vilho, Yrjö and Kalle Väisälä Fund), the OTKA grant NK 101438, 73143 (Hungary) and the NKTH-OTKA grant 74458 (Hungary).
