NEUTRON-RICH CHROMIUM ISOTOPE ANOMALIES IN SUPERNOVA NANOPARTICLES

All rocks on Earth have Cr isotopic compositions (relative abundances of ⁵⁰Cr, ⁵²Cr, ⁵³Cr, and ⁵⁴Cr) that very closely follow the laws of mass-dependent fractionation (Ellis et al. 2002; Schoenberg et al. 2008). In contrast, some meteorites exhibit anomalous enrichments or depletions in the abundance of the neutron-rich isotope ⁵⁴Cr, relative to the abundance expected based on co-existing Cr isotopes and the laws of mass-dependent fractionation (Birck & Allègre 1984; Papanastassiou 1986; Rotaru et al. 1992; Podosek et al. 1997, 1999; Nichols et al. 1998, 2000; Alexander 2002; Shukolyukov & Lugmair 2006; Trinquier et al. 2007; Birck et al. 2009; Qin et al. 2010). These anomalies must have a nucleosynthetic origin, meaning that they were produced by nuclear reactions in stars that existed before the Sun was born. They were presumably incorporated in solar system materials in the form of presolar grains that escaped volatilization in the protosolar nebula (Mendybaev et al. 2002). Presolar grains directly probe the composition of the astrophysical environment where they were condensed and provide a view of stellar nucleosynthesis that complements information offered by astronomical techniques. Several types of presolar grains from various types of stars have already been identified in meteorites (Zinner 1998; Lodders & Amari 2005) but the carrier of ⁵⁴Cr anomalies has eluded characterization. Previous measurements of bulk meteorite residues have shown that the carrier of ⁵⁴Cr anomalies must be smaller than 300 nm (Nichols et al. 1998, 2000). Several conference abstracts have reported the detection of ⁵⁴Cr excess in individual grains from meteorites (Ott et al. 1997; Qin et al. 2009; Dauphas et al. 2010; Nittler et al. 2010) but many questions are left unanswered as to the exact nature of these grains (i.e., phase, size, and textural association with other phases). To address the question of the nature and origin of the carrier of ⁵⁴Cr anomalies, we have studied the Cr isotopic composition of residues from primitive meteorites using a high spatial resolution ion probe (Cameca NanoSIMS-50L).

2.1. Preparation of Orgueil and Murchison Residues

Based on previous studies (Rotaru et al. 1992; Podosek et al. 1997; Nichols et al. 1998, 2000), a protocol was established to concentrate the carrier of ⁵⁴Cr anomalies (Figure 1). Approximately 1.4 g each of the meteorites Orgueil and Murchison were disaggregated at the University of Chicago using the freeze-thaw technique. The disaggregated meteorites were first treated with 5 ml of 50% acetic acid (∼9 mol l⁻¹) for 2 days at room temperature (∼20°C). The residues were then leached with 10 ml of 4.5 mol l⁻¹ nitric acid for 10 days at ∼20°C. After removing the supernatants, solutions of 30%–40% sodium hydroxide (∼13 mol l⁻¹) were added to the residues. Magnetic minerals that adhered to a Teflon-coated magnetic stirring bar were removed. By rinsing with water, the pH decreased toward neutrality and large colloidal fractions were produced. The colloidal fractions were pipetted out and were then flocculated by acidification with 2 mol l⁻¹ nitric acid, giving two residues denoted Ocolloid and Mcolloid. The fractions that readily settled at near-neutral pH (non-colloidal) were further treated with 2 ml of 8 mol l⁻¹ nitric acid for 1 hr at ∼70°C followed by a day at ∼20°C. The residues were transferred in solutions of 0.5% sodium hydroxide (∼0.2 mol l⁻¹). Three size fractions were separated in that medium by differential sedimentation rates (Amari et al. 1994). The nominal size fractions calculated from Stokes' law assuming a density of 3 g cm⁻³ for the grains are <200 nm (O < 200 and M < 200), 200–800 nm (O200–800 and M200–800), and >800 nm (O > 800 and M > 800). The size distributions measured by secondary electron microscopy (SEM) and transmission electron microscopy (TEM) are in good agreement with calculated nominal sizes.

Zoom In Zoom Out Reset image size

2.2. Transmission Electron Microscopy

Dried residues were suspended in ethanol by ultrasonication and were then deposited as droplets on carbon-coated copper grids. The samples were studied at the University of Lille using a Tecnai G2-20 twin (LaB₆ filament, 200 kV). The microscope is equipped with an EDAX Si detector for energy dispersive X-ray spectroscopy (EDS). Grain microstructures were studied using bright field imaging in conventional TEM mode, selected area electron diffraction, and annular-bright field imaging in scanning (STEM) mode. Chemical compositions were studied by EDS in STEM configuration with probe sizes ranging from 5 to 10 nm. Chemical compositions were determined by standard deconvolution of the EDS spectra. The microstructure of the samples made it difficult to disentangle contributions from the organic matrix and the mineral grains. Furthermore, contamination of the samples (mainly Na and Cl from the chemical reagents used to prepare the residues) prevented direct quantification. Consequently, the analysis of a mineral grain was generally coupled to the analysis of the surrounding matrix for accurate background subtraction. A second method was to deconvolve the EDS spectra taking into account the contributions of all elements detected (including contaminants), but using only the elements expected in the mineral grain for the quantification. Calculations of element concentrations and atomic ratios were carried out using calibrated k-factors and thin film matrix correction procedures. The k-factors for the major elements were determined using standard specimens according to the parameter-less method of Van Cappellen (1990). The absorption correction procedure based on the principle of electroneutrality (Van Cappellen & Doukhan 1994) was applied whenever possible. Elemental distributions were obtained using spectral imaging wherein each pixel of an image contains a full EDS spectrum (see Leroux et al. 2008 for details). The uncertainty on atomic concentrations is typically in the range 5%–15%. Chromium concentrations as low as 200 ppm were previously quantified on the same microscope (Leroux et al. 2008). The minimum Cr concentration that could be reliably quantified in this study was ∼100 ppm with a relative uncertainty of ±50%.

2.2.1. Microstructure and Mineralogy of the Colloidal Fraction

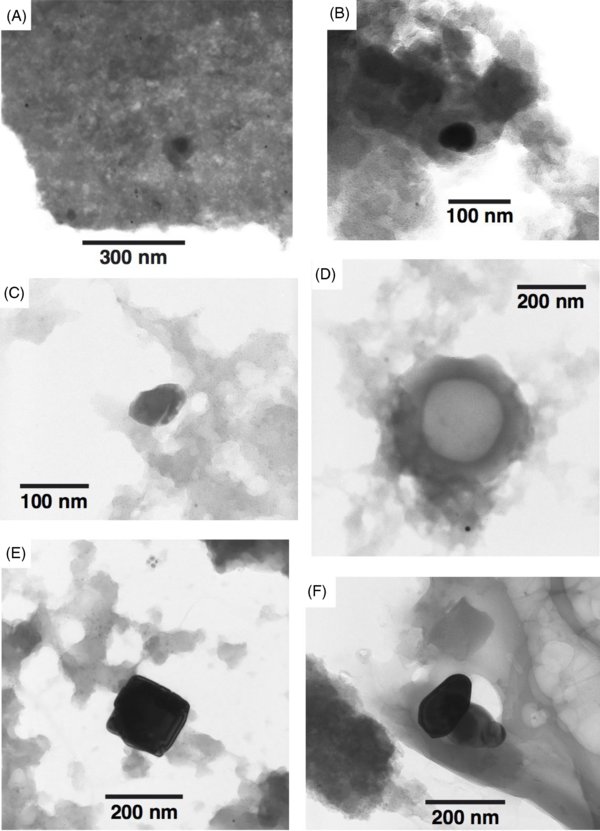

Samples from both Orgueil and Murchison were studied and the results presented below are the same for the two meteorites. The colloidal fraction is mainly composed of amorphous organic matter (OM). Local EDS analysis showed that this OM must contain less than ∼50 ppm of chromium (signal below detection limit). Small crystalline grains are embedded in the fluffy OM of both Murchison and Orgueil separates (Figures 2 and 3). A large population of high-temperature minerals less than 50 nm in size is present in the matrix, namely SiC, anatase (TiO₂), and corundum (Al₂O₃). Small Fe–Ni metal grains (mainly in the size range 10–20 nm) were also observed. No chromium sulfide or phosphide grains, which had been suggested as possible carriers of ⁵⁴Cr anomalies (Podosek et al. 1997), were found. Silica polymorphs (cristobalite) containing significant amounts of aluminum were found in Murchison and Orgueil. They generally occur as 50 nm long crystals embedded in the matrix but were also occasionally found as larger chips (300 nm) in Murchison. Only one Cr-bearing diopside crystal was found among 150 analyses of crystalline grains. This crystal was found in Murchison and no such pyroxene was found in Orgueil. The dominant crystalline phase in our colloidal residues is spinel containing relatively large amounts of chromium (Table 1). In the colloidal fraction, these grains are always smaller than ∼60 nm (Figures 2(A)–(D)). Compositions and diffraction patterns of these grains are consistent with spinel group crystallography and chemistry. X-ray mapping of large clumps of OM and crystalline particles was performed to estimate the volume fraction of these spinels (Figure 3). Conventional image processing performed on four different clumps of a few hundreds of cubic micrometers indicated a reproducible volume fraction of 900 ± 100 ppm spinel in both Orgueil and Murchison. The composition of these minerals is highly variable (Table 1, Figure 4). They are generally Cr-bearing spinels close to the Mg, Al-rich end member of the group (i.e., MgAl₂O₄ with some Cr substituting for Al) but magnesiochromite (MgCr₂O₄) and chromite (FeCr₂O₄) are also present. The average Cr concentration of 29 spinels less than 100 nm in size is 25.7 atomic% (normalized to 100% non-oxygen atoms). Using these values, one can estimate the average Cr content of bulk clumps of OM and crystalline particles such as the one shown in Figure 3 to be 200 ± 100 ppm by weight. This value is similar to the bulk value obtained by bulk EDS analysis. Though indirect, this mass balance calculation supports the idea that the only significant carriers of chromium are nanospinels.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

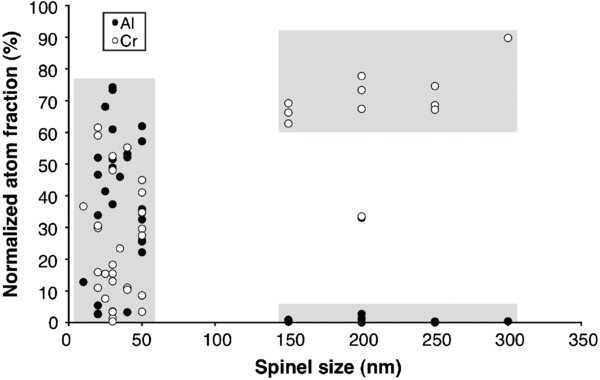

Table 1. Atomic Compositions of Nanospinels (Normalized to 100% Non-oxygen Atoms)

Meteorite	Size Fraction	size (nm)	Cr	Al	Mg	Fe
Orgueil (Cl1)
	Colloidal	10	36.63	12.77	27.26	23.33
	Colloidal	20	58.99	2.78	35.04	3.19
	Colloidal	20	29.82	33.88	10.25	26.04
	Colloidal	20	15.91	46.64	36.24	1.21
	Colloidal	30	1.33	73.37	25.06	0.23
	Colloidal	30	3.43	74.26	15.69	6.62
	Colloidal	30	48.07	3.56	27.98	20.39
	Colloidal	35	23.36	45.99	21.61	9.05
	Colloidal	40	55.27	3.31	27.59	13.84
	Colloidal	40	10.35	53.21	35.47	0.96
	Colloidal	50	34.59	22.14	32.66	10.61
	Colloidal	50	34.75	32.54	32.08	0.63
	Colloidal	50	27.46	35.82	32.85	3.87
	Colloidal	50	3.42	61.96	34.62	0.00
	Colloidal	50	41.03	25.59	10.76	22.63
	Colloidal	150	66.28	0.91	19.93	12.88
	<200nm	150	69.21	0.21	19.66	10.91
	<200nm	200	77.77	2.72	3.66	15.85
	<200nm	200	67.41	1.27	14.14	17.18
	<200nm	250	67.20	0.35	28.72	3.73
	<200nm	250	74.60	0.29	0.32	24.79
Murchison (CM2)
	Colloidal	20	30.55	5.45	49.16	14.84
	Colloidal	20	10.94	51.98	33.34	3.73
	Colloidal	20	61.48	2.62	12.24	23.65
	Colloidal	25	7.58	68.09	15.18	9.14
	Colloidal	25	15.40	41.40	12.86	30.34
	Colloidal	30	13.04	51.60	25.26	10.10
	Colloidal	30	0.38	60.94	37.33	1.35
	Colloidal	30	18.27	37.33	13.49	30.92
	Colloidal	30	15.48	48.90	10.47	25.15
	Colloidal	30	52.52	3.35	32.29	11.84
	Colloidal	40	11.05	52.12	36.48	0.35
	Colloidal	50	44.94	8.53	27.41	19.12
	Colloidal	50	29.61	25.94	31.52	12.93
	Colloidal	50	8.57	57.19	34.07	0.17
	Colloidal	150	62.80	0.58	30.10	6.52
	<200nm	200	33.52	33.00	32.39	1.10
	<200nm	200	73.34	0.00	8.74	17.92
	<200nm	250	68.56	0.00	26.30	5.14
	<200 nm	300	89.80	0.43	0.43	9.34

Download table as:  ASCIITypeset image

2.2.2. Microstructure and Mineralogy of the <200 nm Size Fraction

Compared to the colloidal fraction, the <200 nm nominal size fraction is composed of larger spinel grains and less OM. The grains are either completely separated from the OM or are stuck to small particles of OM (Figures 2(E) and (F)). As expected, the grains are 150–200 nm in size and rarely exceed 300 nm. Contrary to the large compositional variations found in the nanospinels of the colloidal fraction, the composition of the large spinels is much more homogeneous (Figure 4). The Al content is extremely low and most of them can be described as pure chromite grains. Eskolaite (Cr₂O₃) is also common in this fraction.

2.2.3. Effect of HCl Leaching on the Studied Objects

Samples of the colloidal and <200 nm size fractions were treated with 5 mol l⁻¹ HCl for 1 day at 80°C. Previous work has shown that such treatment releases Cr from phases that have large ⁵⁴Cr excess. In the colloidal fraction after treatment with HCl, no spinel was found in small particles of OM. Only C, S, O, and contaminants like Na and Cl were detected but no Cr was measured. However, we occasionally found some small eskolaite grains, not necessarily associated with the organic matrix, which may be relicts of incompletely dissolved coarser grains. The spatial density of grains in the leached fraction is much smaller compared to that before leaching, indicating that the grains were dissolved by hot HCl (Figure 5).

Zoom In Zoom Out Reset image size

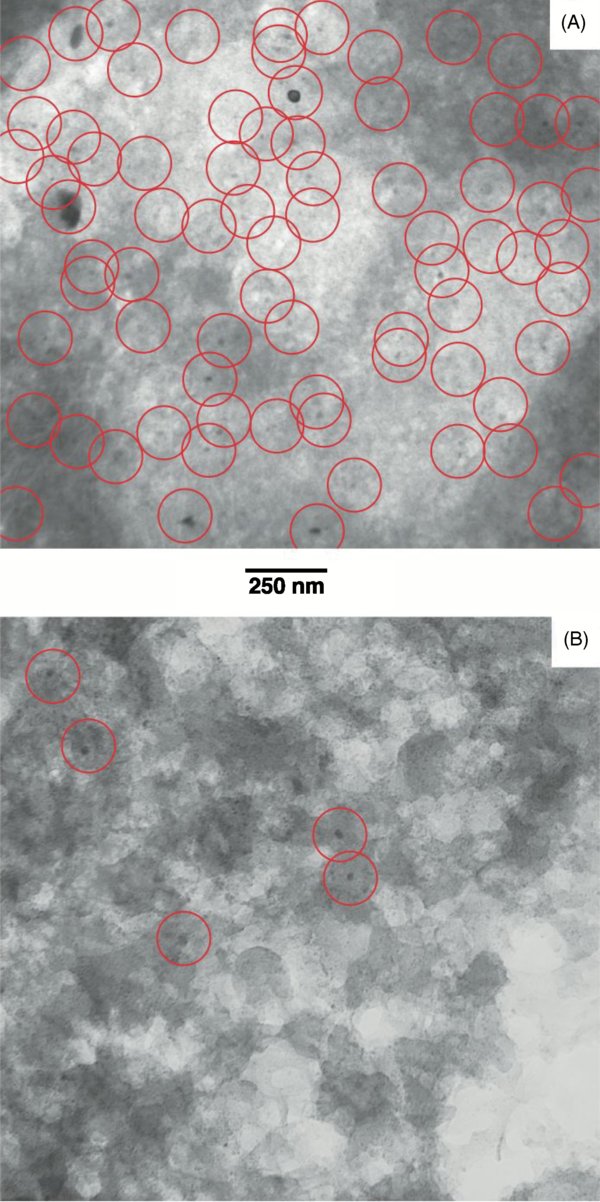

In large particles of OM (several micrometers in length), small spinels and even metal nuggets are still present in the innermost part, while they are absent in a leached layer in the outer part. Thus, small spinels seem to be readily dissolved by HCl, unless they are embedded in a protective layer of OM. This point is further supported by TEM study of the <200 nm size fraction. After the same HCl treatment, some spinels and eskolaite are recovered but their size is only 50–100 nm compared to 150–200 nm before leaching. This size reduction must owe to the fact that they have been partially dissolved by hot HCl.

2.3. Thermal Ionization Mass Spectrometry

2.4. NanoSIMS Measurements and Data Reduction

2.4.1. Instrumental Setting and Data Acquisition

NanoSIMS imaging was performed on the Cameca NanoSIMS 50L installed at the Caltech Center for Microanalysis during three sessions covering a total duration of 24 days. A primary O⁻ beam of ∼30 pA, with an energy of 16 kV, was rastered on surface areas of 20 × 20 or 40 × 40 μm² at a raster speed of 20 ms pixel⁻¹. The spatial resolution with the O⁻ beam was between 400 and 800 nm. The images were acquired with resolutions of 256 × 256 and 512 × 512 pixels for 20 × 20 and 40 × 40 μm² raster areas, respectively (78 nm pixel⁻¹). Secondary ion images of ⁵²Cr⁺, ⁵³Cr⁺, ⁵⁴Cr⁺+⁵⁴Fe⁺, ⁵⁶Fe⁺, and ⁵⁷Fe⁺ were recorded in multi-collection mode, using Hamamatsu discrete dynode electron multipliers with a dead time of 44 ns. Before each analysis, a high primary current (around 600 pA) was used to pre-sputter the surface to achieve a steady state of secondary ion emission and to remove surface contamination. Vacuum in the analysis chamber was ∼2.7 × 10⁻⁹ mbar. The contribution of hydride molecular ions was negligible. Terrestrial chromite was analyzed everyday to check stability, reproducibility, and to correct the data. Chromium carbide and magnetite were also used in each session to refine and validate the correction of ⁵⁴Fe interference on ⁵⁴Cr. The useful yield of Cr (defined as the number of ions detected per atom sputtered from the sample) was ∼3.7 times that of Fe.

2.4.2. Data Reduction

The mass resolving power (MRP = M/ΔM) was about 9000 on ⁵²Cr, which is insufficient to resolve the interference of ⁵⁴Fe on ⁵⁴Cr (requiring an MRP of >73,000). The contribution of ⁵⁴Fe⁺ on ⁵⁴Cr⁺ was therefore corrected using ⁵⁶Fe⁺ intensity and a fixed ⁵⁴Fe/⁵⁶Fe ratio,

$$\begin{eqnarray*} &&\frac{{^{54} {\rm Cr}}}{{^{52} {\rm Cr}}} = \frac{{^{54} {\rm i}^ + }}{{^{{\rm 52}} {\rm i}^{\rm + } }} - \frac{{^{56} {\rm i}^ + }}{{^{{\rm 52}} {\rm i}^{\rm + } }} \times \left({\frac{{^{54} {\rm Fe}}}{{{^{56}\rm Fe}}}} \right)_{{\rm terrestrial}}. \end{eqnarray*}$$

The correction was adjusted using magnetite measurements by modifying the assumed (terrestrial) ⁵⁴Fe/⁵⁶Fe ratio. The ⁵⁷Fe/⁵⁶Fe ratio was monitored to make sure that the assumption of uniform Fe isotopic composition was correct. Mass fractionation on Cr isotopes was either not corrected or was corrected by internal normalization assuming a terrestrial value for the ⁵³Cr/⁵²Cr ratio (Shields et al. 1966) and using the exponential law (Russell et al. 1978).

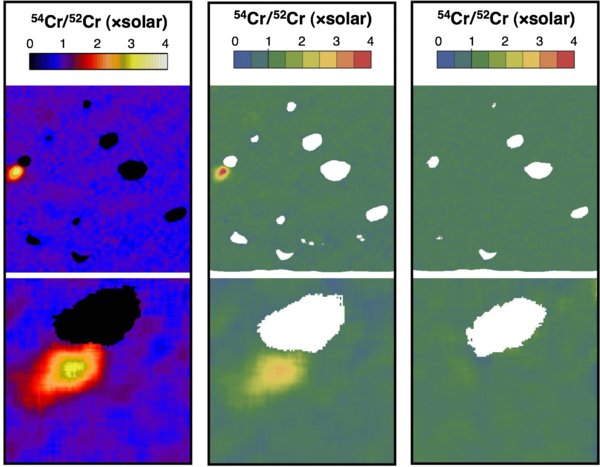

Image analysis was performed following two different approaches. In method 1, regions of interest (ROIs) corresponding to isolated grains were defined using a grain identification algorithm included in L'image software (L. R. Nittler, Carnegie Institution of Washington). For each ROI, the total counts were retrieved to calculate ⁵⁴Cr/⁵²Cr isotopic ratios as previously described. The drawback of this approach is that one may miss anomalies carried by small or Cr-poor grains. In method 2, corrected ⁵⁴Cr/⁵²Cr isotope ratio images were generated using a Mathematica routine and L'image software. These images were used to locate ⁵⁴Cr-rich "hot spots". Corrected ⁵⁴Cr/⁵²Cr ratios were calculated from the total counts in each ROI corresponding to these hot spots. To generate isotopic ratio images, the isotopic ratio of each pixel was normalized to the isotopic ratio of the bulk image. This approach allows us to identify isotopic anomalies that do not relate to any resolvable grain. Isotopic ratio images generated using Mathematica and L'image software are almost identical (compare Figures 6(A) and (B)).

Zoom In Zoom Out Reset image size

2.4.3. Assessment of Uncertainties

In order to assess the total uncertainty on ⁵⁴Cr/⁵²Cr ratios, ion images of isotopically and chemically homogeneous chromite grains were subdivided into grids of squares or hexagons of uniform sizes. For example, a 10 × 10 μm² image of 128 × 128 pixels was divided into 9 ROIs of 32 × 32 pixels each, 49 ROIs of 16 × 16 pixels, 225 ROIs of 8 × 8 pixels, 961 ROIs of 4 × 4 pixels, and 4096 ROIs of 2 × 2 pixels. The number of pixels within all ROIs does not always add up to the number of pixels in the total image because ROIs cannot always be defined near the borders. For each unit grid size, the standard deviation of the isotopic ratios of all ROIs was compared with that predicted from counting statistics. For ⁵³Cr/⁵²Cr and ⁵⁷Fe/⁵⁶Fe ratios, the measured dispersion is entirely accounted for by total ion counts and Poisson statistics. The (⁵⁴Cr+⁵⁴Fe)/⁵²Cr and ⁵⁶Fe/⁵²Cr ratios vary more than what is allowed by counting statistics, presumably because of additional variability during secondary ion formation of Cr and Fe. The uncertainties on these ratios can be expressed as the sum of the uncertainty associated with counting statistics and a term that is proportional to the ⁵⁶Fe⁺/⁵²Cr⁺ ratio:

$$\begin{eqnarray*} \sigma _{{\rm 53/52}} &=& \sigma _{{\rm Poisson}} \nonumber\\ \sigma _{{\rm 54/52}} &=& 0.0027 \times ({56^ + /52^ + })\,{+}\,\sigma _{{\rm Poisson}} \nonumber\\ \sigma _{{\rm 56/52}} &=& 0.053 \times ({56^ + /52^ + })\,{+}\,\sigma _{{\rm Poisson}} \nonumber\\ \sigma _{{\rm 57/56}} &=& \sigma _{{\rm Poisson}}. \end{eqnarray*}$$

The factors of 0.0027 and 0.053 were obtained by plotting the dispersion in the measured ratios of the standard chromite grains (σ_54/52 and σ_56/52) as a function of the error associated with counting statistics (σ_Poisson). For (⁵⁴Cr+⁵⁴Fe)/⁵²Cr and ⁵⁶Fe/⁵²Cr ratios, a linear relationship was found with a y-intercept different from zero. The y-intercept was assumed to scale linearly with the measured (56⁺/52⁺) ratio. These relationships were used to calculate uncertainties on isotopic ratios from total counts in ROIs. Error propagation was used to calculate the uncertainty on the ⁵⁴Cr/⁵²Cr ratio corrected for ⁵⁴Fe isobaric interference:

$$\begin{eqnarray*} &&\sigma _{^{{\rm 54}} {\rm Cr/}^{{\rm 52}} {\rm Cr}} {\rm = }\sqrt {\sigma ^2 _{54/52} {\rm + }0.0637^2 \times \sigma ^{2}_{56/52} } \quad {\rm.} \end{eqnarray*}$$

Another approach was adopted for assessing uncertainties on isotope ratio images and for evaluating the significance of ⁵⁴Cr-rich regions. Ion count images of ⁵²Cr and ⁵⁶Fe were used to generate synthetic images of ⁵³Cr and ⁵⁴Cr+⁵⁴Fe using terrestrial ⁵³Cr/⁵²Cr, ⁵⁴Cr/⁵²Cr, and ⁵⁴Fe/⁵⁶Fe ratios. By construction, these images have normal (terrestrial) isotopic compositions and have a spatial distribution of ⁵²Cr ion counts that is identical to that of the real image. A random number generator following Poisson distribution is then applied to each pixel to simulate the presence of noise associated with limited counting statistics. Those images are then subjected to the same treatment as that applied to real data. A Mathematica script modified from the one written to analyze real data was used to generate these synthetic images. The synthetic maps of normal (terrestrial) ⁵⁴Cr/⁵²Cr ratio with noise added can then be compared directly with measured isotope ratio images (compare Figures 6(B) and (C)).

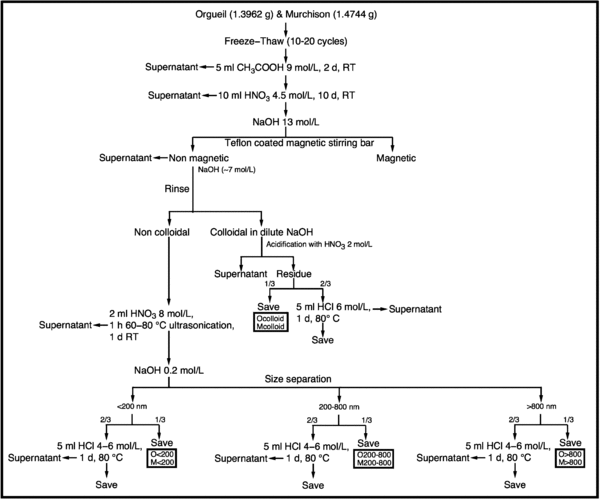

Approximately 1.4 g each of the carbonaceous chondrites Orgueil (classified as CI1) and Murchison (CM2) were treated by a sequence of acid leaching, magnetic separation, and size separation (Nichols et al. 1998, 2000) (Figure 1). Because leaching with hot HCl is known to partially dissolve the carrier of ⁵⁴Cr anomalies, this acid was avoided during preparation of the residues. For each meteorite, four residues differing in nominal grain size were isolated (colloidal, <200 nm, 200–800 nm, and >800 nm). Bulk Cr isotopic compositions of all residues were measured by Thermal Ionization Mass Spectrometry at the Jet Propulsion Laboratory (Table 3, Figure 7). All four residues from each meteorite show a large excess ⁵⁴Cr. The colloidal fractions present the largest anomalies, with ε⁵⁴Cr values {ε⁵⁴Cr = [(⁵⁴Cr/⁵²Cr)_sample/(⁵⁴Cr/⁵²Cr)_standard −1] × 10⁴} of +170.26 ± 0.11 and +148.03 ± 0.17 in Orgueil and Murchison, respectively. This is much higher than previously reported values of ε⁵⁴Cr ∼ 10 to 20 in bulk residues of carbonaceous chondrites (Shukolyukov & Lugmair 2006; Qin et al. 2010). The large excesses in ⁵⁴Cr are accompanied by small deficits in ⁵³Cr (ε⁵³Cr ∼ −ε⁵⁴Cr/84).

Zoom In Zoom Out Reset image size

Individual Cr-rich grains in the colloidal fraction are too small to be analyzed by NanoSIMS (∼30 nm median size, measured at Université de Lille 1 by TEM). We therefore focused on larger grains, in particular those from the <200 nm nominal size fraction of Orgueil (bulk ε⁵⁴Cr = +38.60 ± 0.12). A suspension of these grains was deposited on a gold foil, and the Cr isotopic composition of the grains was mapped using a NanoSIMS-50L. The interference on ⁵⁴Cr⁺ from ⁵⁴Fe⁺ was corrected by measuring ⁵⁶Fe⁺ ion beam intensity and subtracting ⁵⁴Fe⁺ calculated using ⁵⁶Fe⁺ and assuming a known (terrestrial) ⁵⁴Fe⁺/⁵⁶Fe⁺ ratio. The total mapped surface area was ∼31,000 μm² (equivalent to a square of 175 × 175 μm) from which 1437 ROIs were isolated. All ROIs, except two, have normal (terrestrial) ⁵⁴Cr/⁵²Cr ratios within error (Figure 8). The two anomalous grains, denoted np1 and np2 hereafter (for nanoparticles 1 and 2), have ⁵⁴Cr/⁵²Cr ratios of 3.59(±0.29) × solar (ε⁵⁴Cr = +25,861 ± 2903) and 1.27(±0.09) × solar (ε⁵⁴Cr = +2 654 ± 915), respectively (Table 4, Figures 9, 10 and 11). The same spot where np1 was found was measured a second time on a different day and the ⁵⁴Cr excess was confirmed [⁵⁴Cr/⁵²Cr = 2.79(±0.33) × solar; ε⁵⁴Cr = +17,902 ± 3,291]. The different compositions are explained by different dilution with normal Cr from adjacent grains.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

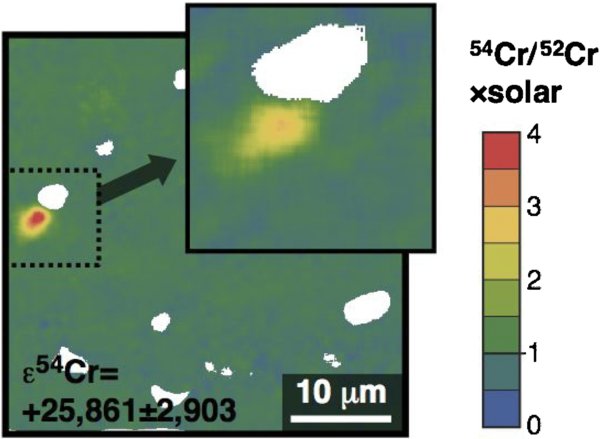

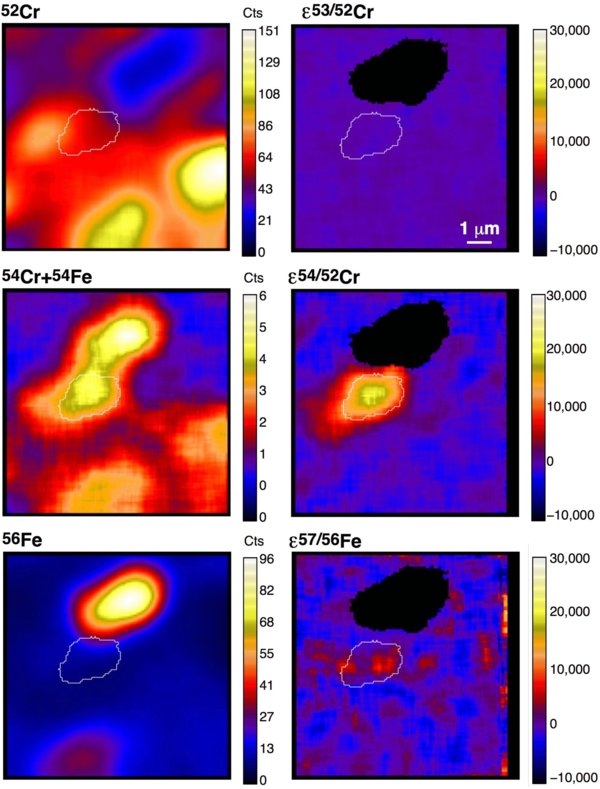

In np1, the ⁵⁴Fe correction on ε⁵⁴Cr of −5775 (corresponding to an Fe/Cr ratio of ∼0.7) is small compared to the measured anomaly of +25,861. This correction is calculated assuming constant ⁵⁴Fe/⁵⁶Fe ratio (terrestrial), which may not be valid if the grain formed in an SN. An ⁵⁴Fe/⁵⁶Fe ratio of ∼2 × solar can be produced in Type Ia supernovae (SNeIa; Woosley 1997), which would increase the ⁵⁴Fe interference correction and would bring the ⁵⁴Cr/⁵²Cr ratio of np1 to 3.0 × solar. An ⁵⁴Fe/⁵⁶Fe ratio between ∼0.01 and 0.7 × solar can be produced in the O/Ne and O/C zones of Type II supernovae (SNeII; Rauscher et al. 2002; http://nucastro.org/nucleosynthesis/), which would reduce the ⁵⁴Fe interference correction and would bring the ⁵⁴Cr/⁵²Cr ratio of np1 to 4.2 × solar. However, the measured ⁵⁷Fe/⁵⁶Fe ratio of np1 is terrestrial, suggesting that most Fe in that ROI is from adjacent isotopically normal grains. Thus, it is likely that the ⁵⁴Fe correction assuming solar ⁵⁴Fe/⁵⁶Fe ratio is accurate. To summarize, the anomalies correspond to real excess ⁵⁴Cr and not inadequate correction of ⁵⁴Fe interference.

Assuming that all grains contain the same amount of Cr and given that ∼1 grain out of 1000 contains anomalous ε⁵⁴Cr = +26,000, one would predict that the bulk residue of Orgueil <200 nm size fraction should have ε⁵⁴Cr∼+26, which is close to the measured value of +38.60. Thus, the ⁵⁴Cr-rich grains identified in this study are likely to be the sole carriers of the ⁵⁴Cr anomalies measured in this sample and perhaps in planetary materials in general (Rotaru et al. 1992; Podosek et al. 1997, 1999; Nichols et al. 1998, 2000; Alexander 2002; Shukolyukov & Lugmair 2006; Trinquier et al. 2007; Birck et al. 2009; Qin et al. 2010). These grains have terrestrial isotopically normal ⁵³Cr/⁵²Cr ratios, which is consistent with the bulk ⁵³Cr/⁵²Cr ratio of the <200 nm nominal size fraction of Orgueil being close to terrestrial (ε⁵³Cr = −0.66 ± 0.05).

In the conditions of our measurements, the spatial resolution of the NanoSIMS O⁻ primary beam does not allow us to precisely determine the size of grains smaller than ∼600 nm in diameter. Under a Field Emission Scanning Electron Microscope (FE-SEM), several grain-like structures, all less than ∼100 nm in size, were found at the location of np1, but the grain itself could not be identified. This is consistent with the fact that the largest anomalies in the bulk residues were found in the colloidal fraction that contains grains that are less than ∼100 nm in size (Figure 7). In bulk, the colloidal fractions have ε⁵⁴Cr values (+170 and +148 for Orgueil and Murchison, respectively) that approach those found previously in acid leachates, indicating that the carrier of ⁵⁴Cr anomalies was efficiently concentrated in those fractions. Therefore, we performed a detailed TEM study of the colloidal residue to identify Cr-bearing phases. The dominant crystalline phases are nanospinels containing relatively large amounts of chromium [e.g., Mg(Al,Cr)₂O₄]. These spinels are embedded in OM and are sometimes associated with carbon nanoglobules (Figure 2(D)), which commonly have high ¹⁵N/¹⁴N and D/H ratios indicative of low temperature chemistry in cold molecular cloud or outer protosolar disk environments (Nakamura-Messenger et al. 2006). It is thus likely that the carrier of ⁵⁴Cr anomalies is an oxide grain, and likely a spinel. Most nanospinels have solar composition and it is presently unknown if anything distinguishes mineralogically or chemically the carrier of ⁵⁴Cr anomalies from similar grains formed in the solar system.

To assess the chemical resistance of chromium-bearing nanospinels, we have subjected the residues to 5 mol l⁻¹ HCl for a day at 80°C. The residues were then reexamined under a TEM. In the colloidal fraction, the nanospinels survived when they were embedded in compact OM but they disappeared from the more porous fluffy aggregates (Figure 5). In the <200 nm nominal size fraction of Orgueil, the median of the size distribution shifted from 184 to ∼80 nm, indicating that they were partially digested. It appears that hot HCl can dissolve spinels that are smaller than 100 nm in a relatively short time.

Because of insufficient spatial resolution of the NanoSIMS, the signal from the ⁵⁴Cr-rich grains may have been diluted by normal chromium isotopic composition from surrounding grains. Thus, the true ⁵⁴Cr/⁵²Cr ratio of the carrier phase may be higher than the values reported here and the 3.6 × solar enrichment in the ⁵⁴Cr/⁵²Cr ratio of np1 represents a well-resolved anomaly but a lower limit to the actual ratio. Such a large enrichment cannot be produced in the solar system and must have a stellar origin. The Cr isotopic compositions of some presolar grains (SiC and spinels) thought to have condensed in the outflows of asymptotic giant branch (AGB) stars have been measured and the maximum enrichment in the ⁵⁴Cr/⁵²Cr ratio is ∼1.1 × solar, in agreement with predictions for AGB-star nucleosynthesis (Zinner et al. 2005; Levine et al. 2009; Savina et al. 2010). Therefore, AGB stars can be ruled out as the source of ⁵⁴Cr anomalies in solar system materials. Chromium-54 can be produced in both SNIa (thermonuclear explosion of a carbon-oxygen white dwarf) and SNII (core collapse and explosion of a massive star) SNe. It is estimated that approximately 2/3 of the solar system ⁵⁰Ti came from SNIa and the other 1/3 was produced in SNII (Meyer et al. 1996). The same proportion also applies to ⁵⁴Cr (B.S. Meyer 2010, personal communication).

The nucleosynthesis of ⁵⁴Cr holds clues on the origin and evolution of SNeIa (Woosley 1997; Brachwitz et al. 2000; Thielemann et al. 2004). SNIa are formed in binary systems, when a white dwarf accretes matter from a companion star and carbon fusion is ignited as the star approaches the Chandrasekhar limit. In the inner part of the SNIa, iron-peak nuclei are produced by nuclear quasi-equilibrium. If the central density at ignition is high enough, electron capture can occur, which produces neutron-rich isotopes like ⁴⁸Ca or ⁵⁴Cr (high central ignition densities are the result of low-accretion rates on the white dwarf). In detail, the flame propagation speed also influences the production of ⁵⁴Cr. In Figure 12(A), we compare the measured Cr isotopic composition of ⁵⁴Cr-rich grain np1 with model predictions (slow deflagration models NCD2A-NCD8A of Woosley 1997) for a range of central ignition densities between 2 × 10⁹ and 8 × 10⁹ g cm⁻³ (above ∼ 9 × 10⁹ g cm⁻³, nuclear burning in the white dwarf induces collapse to a neutron star rather than explosion as an SN). The predicted ⁵⁴Cr/⁵²Cr ratios are probably too high because the electron capture rates used by Woosley (1997) have been subsequently revised downward (Brachwitz et al. 2000) but no comprehensive study of the nucleosynthesis of neutron-rich isotopes has been published with these reduced rates. As shown, the Cr isotopic composition of np1 (⁵⁴Cr/⁵²Cr = 3.6 × solar) can be explained by nucleosynthesis in an SNIa using a central ignition density of ∼2 × 10⁹ g cm⁻³. Owing to dilution by surrounding grains, the measured ⁵⁴Cr/⁵²Cr ratio represents a lower limit on the true ratio of the grain so higher ignition densities are also permitted by this constraint. Individual presolar grains, such as the ones identified in this study, record the composition of a particular parcel of matter in the star. Rather than comparing measured isotopic ratios with total yields, they could be compared with nucleosynthetic predictions for tracer particles in multi-dimensional simulations of SNIa explosions (Travaglio et al. 2004, 2005; Brown et al. 2005; Röpke et al. 2006; Meakin et al. 2009; Fink et al. 2010; Maeda et al. 2010). Such simulations are computationally challenging and the parameter space explored so far does not include SNIa progenitors capable of producing neutron-rich isotopes in large quantities.

Zoom In Zoom Out Reset image size

In SNII, neutron-rich isotopes are produced by neutron capture reactions during core C and shell He burning (Rauscher et al. 2002; The et al. 2007; Pignatari et al. 2010). This is known as the weak s-process. Chromium-54 is made during the presupernova evolution of those stars by capture on ⁵³Cr of neutrons produced by the ²²Ne(α, n)²⁵Mg reaction. The other isotopes of Cr are produced as radioactive progenitors (e.g., ⁵²Fe for ⁵²Cr) in the inner region of the SNII by nuclear quasi-equilibrium associated with explosive O and Si burning. Thus, the Cr isotopic composition in one-dimensional SNII models is concentrically zoned. In Figure 12(B), we compare the Cr isotopic ratios measured in np1 with SNII model predictions for a 21 M_☉ progenitor star (Rauscher et al. 2002; http://nucastro.org/nucleosynthesis/). In the region of the star where neutron capture was active (O/Ne and O/C zones, between ∼2.5 and 5.3 M_☉ in mass coordinate), the ⁵⁴Cr/⁵²Cr ratio can reach values as high as ∼120 × solar, which can explain the composition measured in the grain. Very similar enrichments are found for all SNII progenitor masses studied by Rauscher et al. (2002) (15, 19, 20, 21, and 25 M_☉, http://nucastro.org/nucleosynthesis/).

Both SNeIa and II can produce the large enrichments in ⁵⁴Cr that have been measured in individual grains from meteorite residues. However, one might expect the dust that condensed in the outflows from these two types of stars to be different (Meyer et al. 1996; Woosley 1997). In SNII, the zones where the ⁵⁴Cr enrichment is the highest have O/C > 1, so equilibrium thermodynamic calculations predict that dust produced in those regions should be dominated by oxide grains (Fedkin et al. 2010). For instance, it is predicted that spinels should condense as MgAl₂O₄ at ∼1600 K in O/C and O/Ne zones but that during expansion and cooling, ∼20 mol% of MgCr₂O₄ would dissolve in the spinel at 1000 K if equilibrium conditions are maintained. As discussed previously, the carrier of ⁵⁴Cr anomalies is likely to be a nanospinel, which would be consistent with condensation in the ejecta of an SNII. In SNIa, the place where ⁵⁴Cr is produced does not contain oxygen. Yet, study of multi-epoch spectra of SNIa shows that mixing can take place (Stehle et al. 2005; Mazzali et al. 2008) and one cannot exclude the possibility that Cr-bearing oxides could condense in the outflows of those stars (either as new grains or as coatings on grains already present in the interstellar medium (ISM)).

Measuring the isotopic abundance of ⁴⁸Ca in nanospinels will provide a definitive test to distinguish between SNIa and SNII origins, as high density SNIa represents the only conceivable stellar source for ⁴⁸Ca (Meyer et al. 1996; Woosley 1997). Meteorite leachates do not show correlated isotopic anomalies for ⁴⁸Ca and ⁵⁴Cr (Moynier et al. 2010) but this could be a mineralogical effect as the nanospinels identified here do not contain appreciable amounts of Ca. Fractionation and Unknown Nuclear effects (FUN) and hibonite-bearing inclusions in meteorites contain correlated excess in ⁴⁸Ca and other neutron-rich isotopes that are consistent with an SNIa origin (Völkening & Papanastassiou 1989; Meyer & Zinner 2006). Future work will tell whether a link exists between these anomalies and the carrier of ⁵⁴Cr anomalies identified here.

Small, yet resolvable ⁵⁴Cr anomalies are present in bulk planetary materials (Podosek et al. 1999; Shukolyukov and Lugmair 2006; Trinquier et al. 2007; Qin et al. 2010), which can be explained by large-scale heterogeneous distribution of the carrier of ⁵⁴Cr anomalies in the protosolar nebula. Such heterogeneity could have been inherited from the molecular cloud core that made the solar system. The grains identified in this study could have been formed in SNe that exploded long before the formation of the solar system. Even if these grains were homogeneously distributed in the ISM, isotopic anomalies at the scale of planetesimals could have been recovered by gas–dust decoupling (Adachi et al. 1976; Weidenschilling 1977). As shown in the present study, ⁵⁴Cr anomalies are carried by grains less than 100 nm that would follow the gas. Aerodynamic sorting of isotopically normal, coarser grains, could have produced large-scale isotopic anomalies for ⁵⁴Cr. A correlation observed between ⁵⁴Cr/⁵²Cr and Mn/Cr ratios among carbonaceous chondrites (Shukolyukov and Lugmair 2006; Qin et al. 2010) is consistent with this interpretation. However, no correlation was found with other proxies of volatile element depletion (Zn/Si ratio) or size sorting (matrix fraction) in meteorites (Qin et al. 2010). Chromium-54 seems to correlate with anomalies in ⁵⁰Ti (Trinquier et al. 2009). This could arise from the fact that these two neutron-rich isotopes were produced at the same site and that the carriers have the same size and the same chemical properties, so that they would not be decoupled during incorporation in meteorites.

The presence of short-lived nuclides like ²⁶Al (Lee et al. 1976, 1977; Jacobsen et al. 2008; MacPherson et al. 2010) and ⁶⁰Fe (Birck & Lugmair 1988; Shukolyukov & Lugmair 1993; Tachibana & Huss 2003; Mostefaoui et al. 2005; Mishra et al. 2010) at the time of formation of meteorites supports birth of the solar system near a core-collapse SN (ccSN; Cameron & Truran 1977; Foster & Boss 1996; Vanhala & Boss 2000; Chevalier 2000; Ouellette et al. 2007). An appealing possibility is that the SN that injected these extinct radioactivities into the early solar system also delivered the ⁵⁴Cr-rich nanoparticles identified in the present study. A test of this hypothesis will be to search for correlations between ⁵⁴Cr anomalies and the initial abundance of extinct radioactivities like ⁶⁰Fe in meteorites, as this nuclide is produced together with ⁵⁴Cr. Assuming that ⁵⁴Cr-rich nanoparticles and ⁶⁰Fe share the same ccSN origin, one can for example predict the degree to which the initial ⁶⁰Fe/⁵⁶Fe ratio in meteorites should be sensitive to ⁵⁴Cr/⁵²Cr isotopic variations using an equation similar to Equation (C5) of Dauphas et al. (2008):

$$\begin{eqnarray*} ({^{60} {\rm Fe}/^{56} {\rm Fe}})_{_{r,t_0 } } &=& ({^{60} {\rm Fe}/^{56} {\rm Fe}})_{{\rm CHUR},t_0 } + \frac{{10^{ - 4} }}{c}\frac{{1 + \rho ^{56} _{{\rm Fe}} }}{{\rho ^{54} _{{\rm Cr}} - \mu ^{54} _{{\rm Cr}} \rho ^{50} _{{\rm Cr}} }}\nonumber\\ &&\times ({^{60} {\rm Fe}/^{56} {\rm Fe}})_{ccSN} e^{ - \lambda _{60} \Delta t} \nonumber\\ &&\times ({\varepsilon ^{54} {\rm Cr}_r - \varepsilon 54{\rm Cr}_{{\rm CHUR}} }){,} \end{eqnarray*}$$

where (⁶⁰Fe/⁵⁶Fe)_r,t0 and (⁶⁰Fe/⁵⁶Fe)_CHUR,t0 are the ratios in reservoir r and in CHUR (CHondritic Uniform Reservoir, taken here to be a reservoir with initial ⁶⁰Fe/⁵⁶Fe = 6 × 10⁻⁷ and ε⁵⁴Cr = 0), c = (⁵²Cr/⁵⁴Fe)_ccSN/(⁵²Cr/⁵⁴Fe)_CHUR, ρⁱ_Cr = (ⁱCr/⁵²Cr)_ccSN/(ⁱCr/⁵²Cr)_CHUR−1, ρ⁵⁶_Fe = (⁵⁶Fe/⁵⁴Fe)_ccSN/(⁵⁶Fe/⁵⁴Fe)_CHUR−1, μ⁵⁴_Cr = (54−52)/(50−52), and ε⁵⁴Cr is as defined in Section. 2.3.2 (deviation in part per 10,000 of the ⁵⁴Cr/⁵²Cr ratio corrected by internal normalization to a constant ⁵⁰Cr/⁵²Cr ratio relative to a reference composition). Note that this equation assumes that ⁵⁴Cr and ⁶⁰Fe were not chemically decoupled during injection in the solar system. For this calculation, we used the composition of the bulk O/Ne and O/C layers of a 21 M_☉ progenitor star (Rauscher et al. 2002, http://nucastro.org/nucleosynthesis/), an initial ⁶⁰Fe/⁵⁶Fe ratio of 6 × 10⁻⁷ for CHUR (Mishra et al. 2010), and a free-decay interval of 1 Myr between nucleosynthesis in the SN and injection in the solar system (Meyer & Clayton 2000). The half-life of ⁶⁰Fe is that recently measured by Rugel et al. (2009) of 2.62 Myr. The prediction is that for the range of ε⁵⁴Cr values measured in bulk meteorites (from ⁻0.8 in achondrites to +1.6 in CI chondrites; Trinquier et al. 2007; Qin et al. 2010), variations in the initial ⁶⁰Fe/⁵⁶Fe ratio should be on the order of 10%–20% (Figure 13). Such variations will be challenging to detect if present. The results obtained so far on the relative abundance of the neutron-rich isotope ⁵⁸Fe provide no evidence for ⁶⁰Fe heterogeneity at the scale of bulk planetary objects outside of ±10% (Dauphas et al. 2008). FUN inclusions in meteorites show large variations in ε⁵⁴Cr, from −23 to +48 (Papanastassiou 1986). Variations of ⁴⁸Ca in these inclusions clearly favor an SNIa origin (Meyer & Zinner 2006) but Kratz et al. (2001) argued that these anomalies could also be produced in SNII. If the ⁵⁴Cr isotopic anomalies found in FUN inclusions derive from injection from a nearby SN, we would predict that the initial ⁶⁰Fe/⁵⁶Fe ratio in these objects should vary between ∼0 (ε⁵⁴Cr = −23) and 26 × 10⁻⁷ (ε⁵⁴Cr = +48). While this represents a very large range, the main difficulty with these inclusions is their mineralogy, which is not suited to establish ⁶⁰Fe isochrons.

Zoom In Zoom Out Reset image size

Meteorites and planets have variations in the abundance of the neutron-rich isotope ⁵⁴Cr. The nature of the carrier of these anomalies is one of the key unsettled questions in cosmochemistry and planetary sciences. In order to address this question, we have measured the Cr isotopic composition of physical and chemical separates from the primitive carbonaceous chondrites Orgueil and Murchison (Figure 1). The data have clear implications.

• 1.
  The colloidal fraction from Orgueil, which has a median grain size of ∼30 nm, shows the largest ⁵⁴Cr excess ever measured in a bulk meteorite residue (⁵⁴Cr/⁵²Cr = 1.017 × solar, Figure 7). This indicates that the carrier of ⁵⁴Cr anomalies was efficiently concentrated by our procedure and that it must be very fine grained (<100 nm).
• 2.
  In situ Cr isotopic analyses by secondary ion mass spectrometry of the <200 nm nominal size fraction of Orgueil (median grain size 184 nm) revealed the presence of ⁵⁴Cr-rich nanoparticles (⁵⁴Cr/⁵²Cr > 3.6 × solar, Figure 11). Mass balance shows that heterogeneous distribution of these nanoparticles in the inner solar system can explain the variations in ⁵⁴Cr abundance measured in meteorites and terrestrial planets.
• 3.
  Because of their small size, no direct mineralogical characterization of the ⁵⁴Cr-rich grains could be performed. However, study by TEM shows that ⁵⁴Cr-rich grains are found in a fraction where the sole chromium-bearing grains are oxides, mostly nanospinels (Figure 2). Previous studies have shown that ⁵⁴Cr anomalies in meteorites can be released by leaching samples with hot hydrochloric acid. In our study, nanospinels less than 100 nm likely carrying ⁵⁴Cr excess were also digested by hot HCl treatment (Figure 5).
• 4.

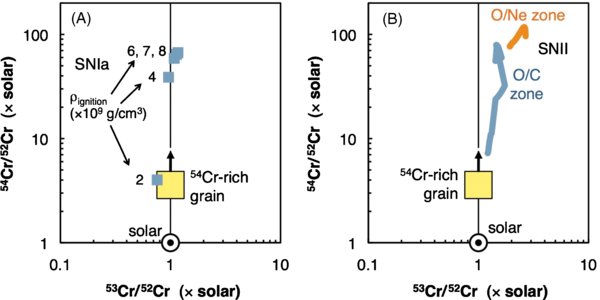

  The large ⁵⁴Cr anomalies measured in meteorite residues can only be produced in SNe (Figure 12). At the present time, we cannot tell which of SNeIa and II produced the grains identified here, though the oxide mineralogy would favor condensation from a Type II. This question can be addressed in the future by measuring the isotopic abundance of other neutron-rich isotopes, in particular ⁴⁸Ca, in the same grains. Study of these grains will shed new light on the nucleosynthesis of iron-group nuclei and the evolution of SNe.
• 5.
  It is possible that the same ccSN that synthesized ²⁶Al and ⁶⁰Fe present in the early solar system when meteorites formed also delivered the ⁵⁴Cr-rich nanoparticles identified in this study. A test of this hypothesis will be to search for correlations between ⁵⁴Cr isotopic anomalies and the abundances of extinct radioactivities of SN origin (Figure 13).

Discussions with B.S. Meyer, F.K. Thielemann, T. Rauscher, R. Yokochi, A.M. Davis, and P.R. Craddock were appreciated. We thank T. Stephan and F.J. Stadermann for their help in our attempt to acquire Auger data on the ⁵⁴Cr-rich grains. Constructive comments from an anonymous referee greatly improved the manuscript. The TEM national facility in Lille (France) is supported by the Conseil Regional du Nord-Pas de Calais, the European Regional Development Fund (ERDF), and the Institut National des Sciences de l'Univers (INSU, CNRS). J.H.C. and the laboratories at JPL were supported by NASA Cosmochemistry. This work was supported by a Packard fellowship, the France Chicago Center, a Moore Distinguished Scholarship at the California Institute of Technology, and NASA and NSF through grants NNX09AG59G and EAR-0820807 to N.D.
